SKU: 7203BEP-SKF

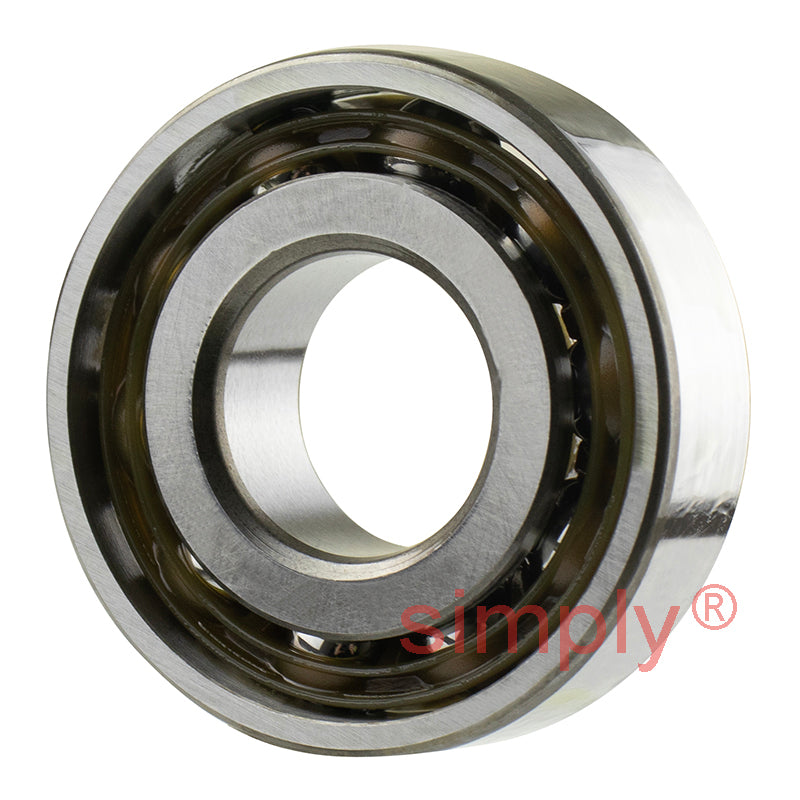

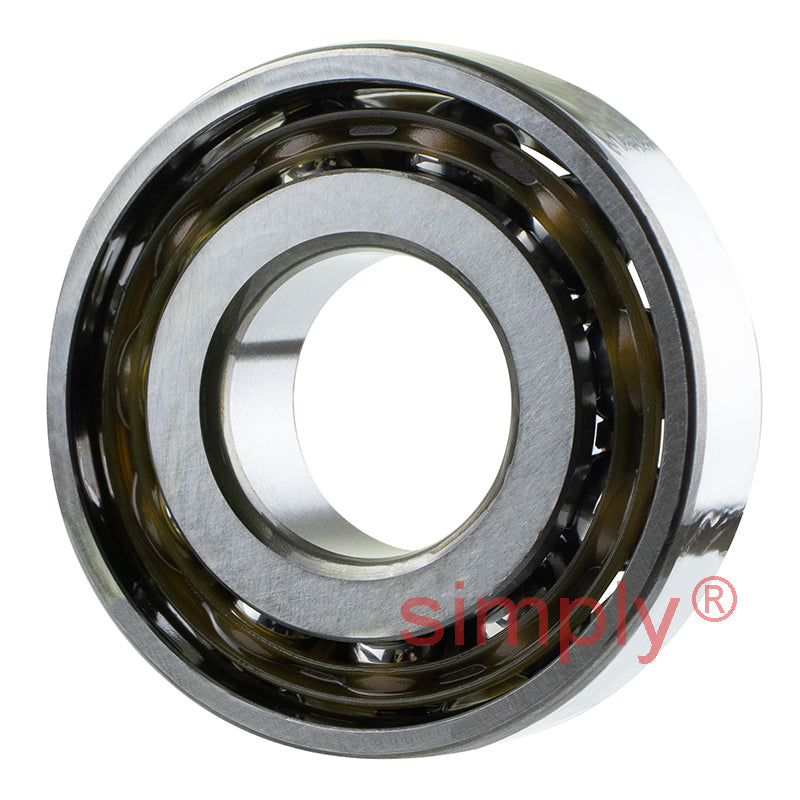

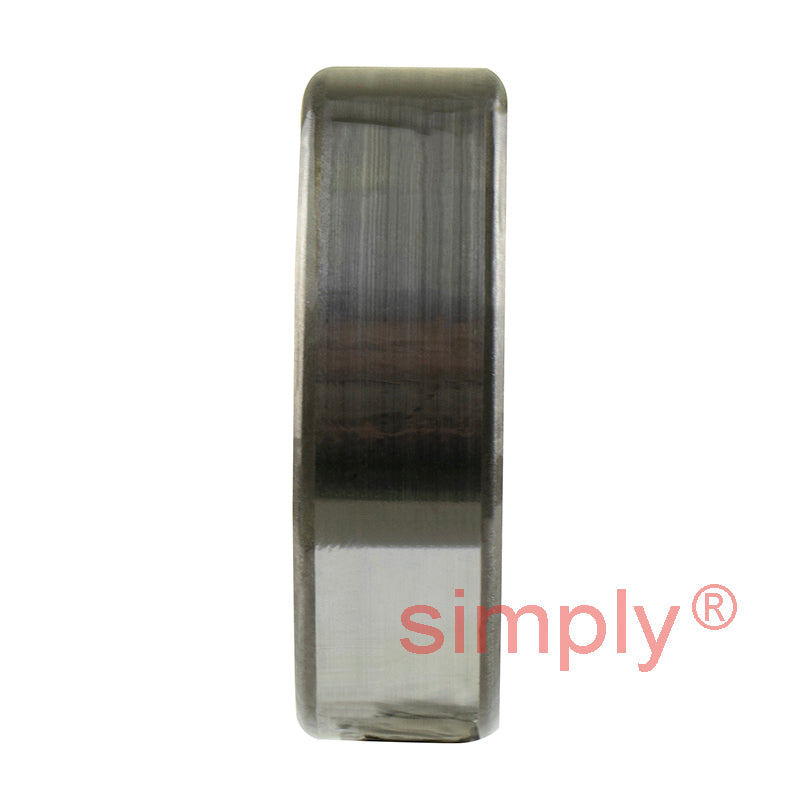

SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
Regular price
£20.39
ex VAT£24.47inc. VAT
Regular price
Sale price
£20.39
ex VAT£24.47
inc. VAT
Equivalent to: 7203BEP
In stock
Price Break
4+
£18.15
8+
£17.13
12+
£16.93
16+
£16.72
25+
£16.52
50+
£16.31
99+
£15.29
199+
£15.09
249+
£14.89
499+
£14.68
999+
£14.27
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load Cr | 10.4 kN |
| Static load Cor | 5.5 kN |
| Fatigue load limit Pu | 0.236 kN |
| Reference speed | 20000 rpm |
| Limit speed | 20000 rpm |
| Weight | 0.064 kg |
| d1 | 26.3mm |
| d2 | 21.7mm |
| D1 | 31.2mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| a | 18mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| Db max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
