SKU: 7201BECBP-SKF

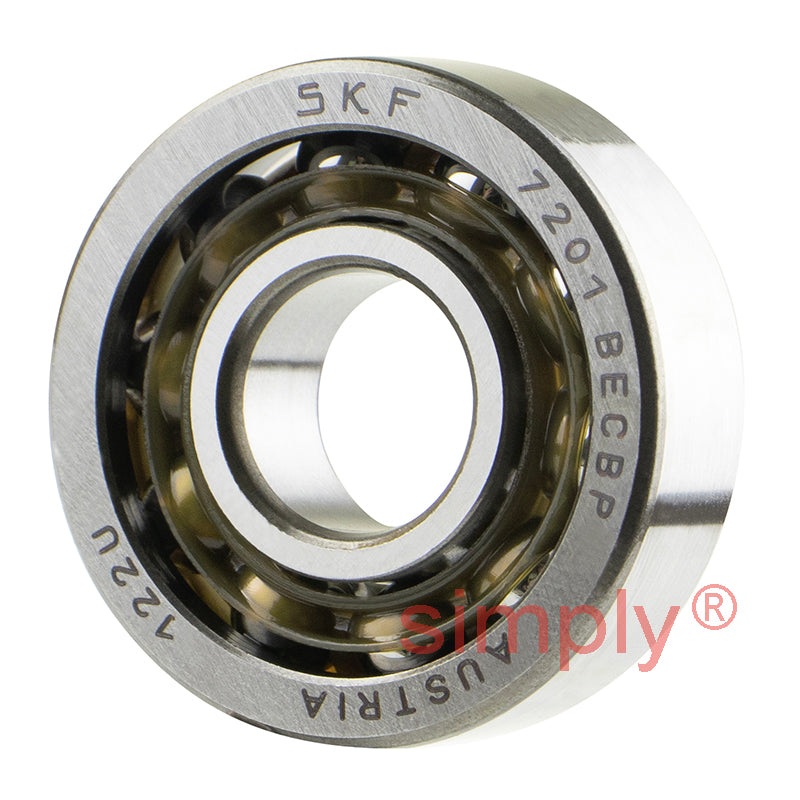

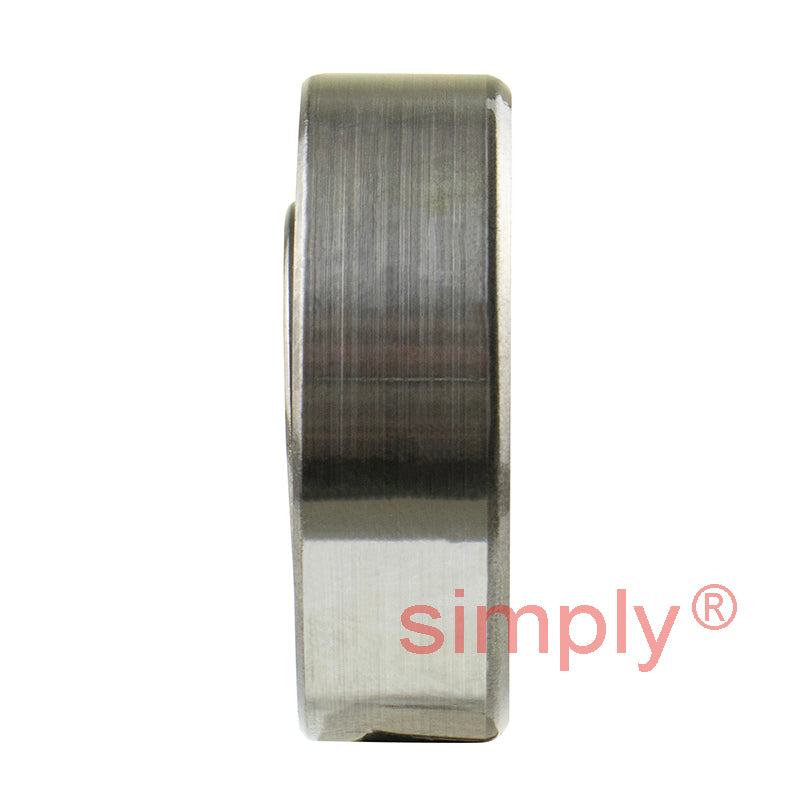

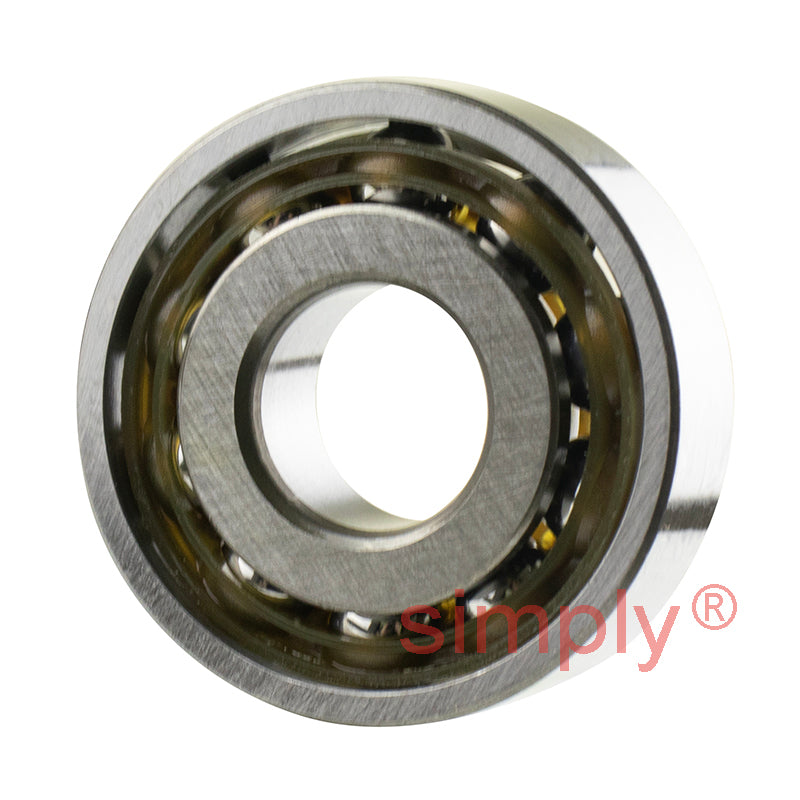

SKF 7201BECBP Single Row Angular Contact Ball Bearing 12x32x10mm
SKF 7201BECBP Single Row Angular Contact Ball Bearing 12x32x10mm
Regular price
£35.25
ex VAT£42.30inc. VAT
Regular price
Sale price
£35.25
ex VAT£42.30
inc. VAT
Equivalent to: 7201BECBP
In stock
Price Break
4+
£31.37
8+
£29.61
12+
£29.25
16+
£28.90
25+
£28.55
50+
£28.20
99+
£26.44
199+
£26.08
249+
£25.73
499+
£25.38
999+
£24.67
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7201BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7201BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard

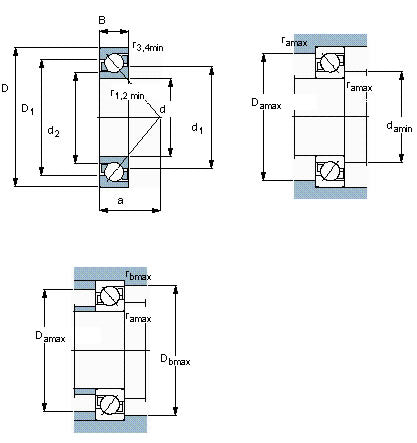

Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dynamic load Cr | 7.61 kN |
| Static load Cor | 3.8 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 26000 rpm |
| Limit speed | 26000 rpm |
| Weight | 0.036 kg |
| d1 | 20.2mm |
| d2 | 16.6mm |
| D1 | 25mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| a | 14.4mm |
| da min | 16.2mm |
| Da max | 27.8mm |
| Db max | 29.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
