SKU: 719USOC15 .A21.I/I.M-UKF

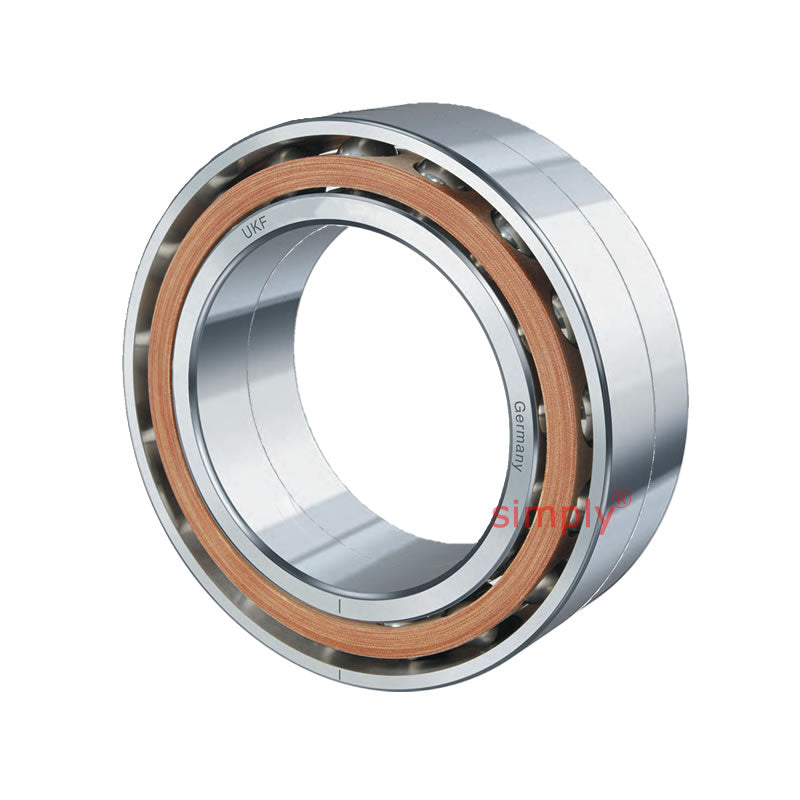

UKF 719USOC15A21IIM Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
UKF 719USOC15A21IIM Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
Regular price
£268.35
ex VAT£322.02inc. VAT
Regular price
Sale price
£268.35
ex VAT£322.02
inc. VAT
Equivalent to: 719USOC15 .A21.I/I.M
In stock
Price Break
10+
£238.83
19+
£225.41
29+
£222.73
39+
£220.05
49+
£217.36
74+
£214.68
99+
£201.26
199+
£198.58
249+
£195.90
499+
£193.21
999+
£187.85
Couldn't load pickup availability
Description
Description
Equivalent: 719USOC15 .A21.I/I.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 14mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 14mm |
| Dynamic load Co | 2860 N |
| Static load C | 5810 N |
| Speed in Grease | 57400 rpm |
| Speed in Oil | 89600 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 17.5mm |
| D<sub>a</sub> | 25.5mm |
| Axial Preload F<sub>v</sub> L | 30 N |
| Axial Preload F<sub>v</sub> M | 100 N |
| Axial Preload F<sub>v</sub> S | 200 N |
| Axial Rigidity R<sub>a</sub> L | 33 N/μm |
| Axial Rigidity R<sub>a</sub> M | 49 N/μm |
| Axial Rigidity R<sub>a</sub> S | 62 N/μm |
| Radial Rigidity R<sub>r</sub> L | 132 N/μm |
| Radial Rigidity R <sub>r</sub> M | 201 N/μm |
| Radial Rigidity <sub>r</sub> S | 253 N/μm |
| Weight | 0.03 kg |
