SKU: 714-252555A2

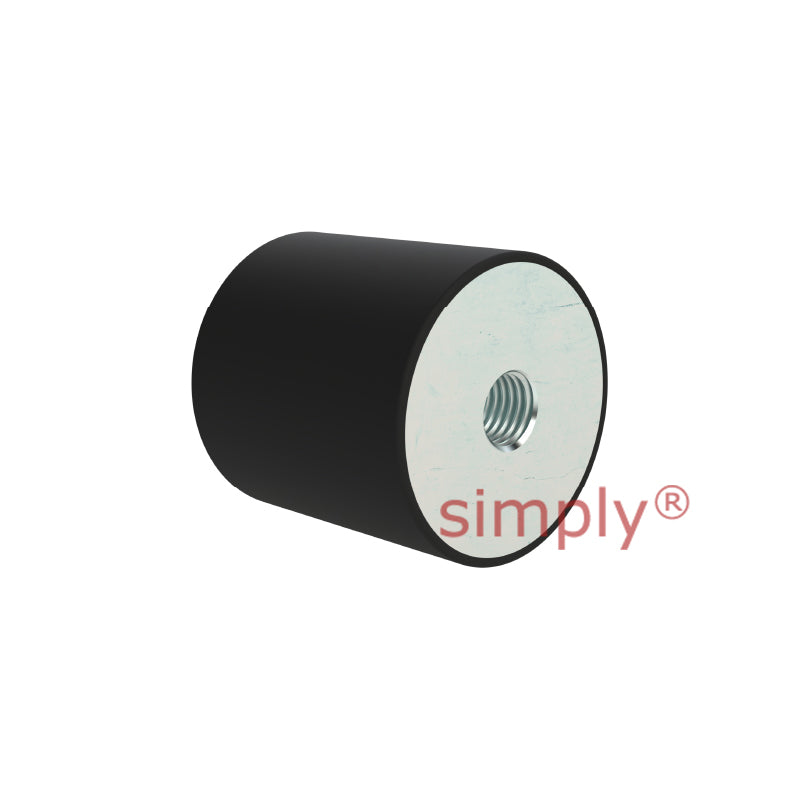

High-Performance Stainless Steel Female Rubber Cylindrical Bump Stop 25x25mm M6 Thread
High-Performance Stainless Steel Female Rubber Cylindrical Bump Stop 25x25mm M6 Thread
Regular price
£7.08
ex VAT£8.50inc. VAT
Regular price
Sale price
£7.08
ex VAT£8.50
inc. VAT
In stock
Price Break
4+
£6.30
9+
£5.95
14+
£5.88
19+
£5.81
49+
£5.74
17+
£5.66
99+
£5.31
199+
£5.24
249+
£5.17
499+
£5.10
999+
£4.96
Description
Description
Female Stainless Steel Flat Buffers: These female anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of stainless corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M6
- Outside Diameter:
- 25mm
- Length:
- 25mm
- Material:
- Stainless Steel
Technical
Technical
| L | 25mm |
|---|---|
| D | 25mm |
| D1 | M6 |
| L1 | 6mm |
| Max Compressive Load | 32.6kg |
| Deflection at Max Compressive Load | 3.2mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.03 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+steel+nut">M6 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+set+screw">M6 Click Here</a> |
