SKU: 70USSC120 .A25.0/0.M-UKF

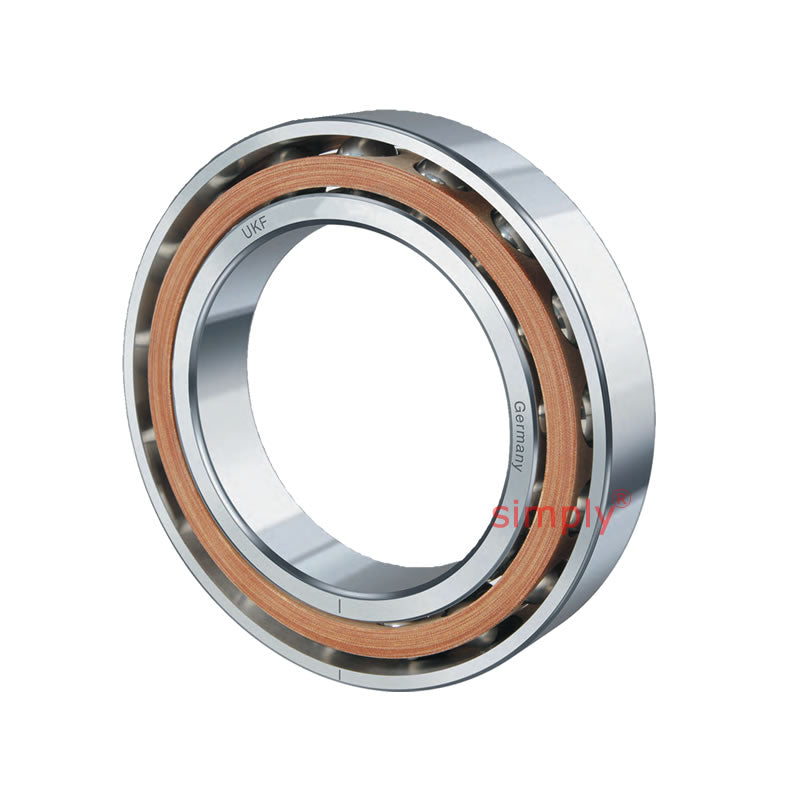

UKF 70USSC120A2500M Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
UKF 70USSC120A2500M Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
Regular price
£791.68
ex VAT£950.02inc. VAT
Regular price
Sale price
£791.68
ex VAT£950.02
inc. VAT
Equivalent to: 70USSC120 .A25.0/0.M
In stock
Price Break
10+
£704.60
19+
£665.01
29+
£657.09
39+
£649.18
49+
£641.26
74+
£633.34
99+
£593.76
199+
£585.84
249+
£577.93
499+
£570.01
999+
£554.18
Couldn't load pickup availability
Description
Description
Equivalent: 70USSC120 .A25.0/0.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 25 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load Co | 58850 N |
| Static load C | 73500 N |
| Speed in Grease | 8400 rpm |
| Speed in Oil | 12800 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 132mm |
| D<sub>a</sub> | 168mm |
| Axial Preload F<sub>v</sub> L | 730 N |
| Axial Preload F<sub>v</sub> M | 2200 N |
| Axial Preload F<sub>v</sub> S | 4400 N |
| Axial Rigidity R<sub>a</sub> L | 247 N/μm |
| Axial Rigidity R<sub>a</sub> M | 357 N/μm |
| Axial Rigidity R<sub>a</sub> S | 449 N/μm |
| Radial Rigidity R<sub>r</sub> L | 989 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1426 N/μm |
| Radial Rigidity <sub>r</sub> S | 1794 N/μm |
| Weight | 1.83 kg |
