SKU: 70USOC15 .A21.0/I.M-UKF

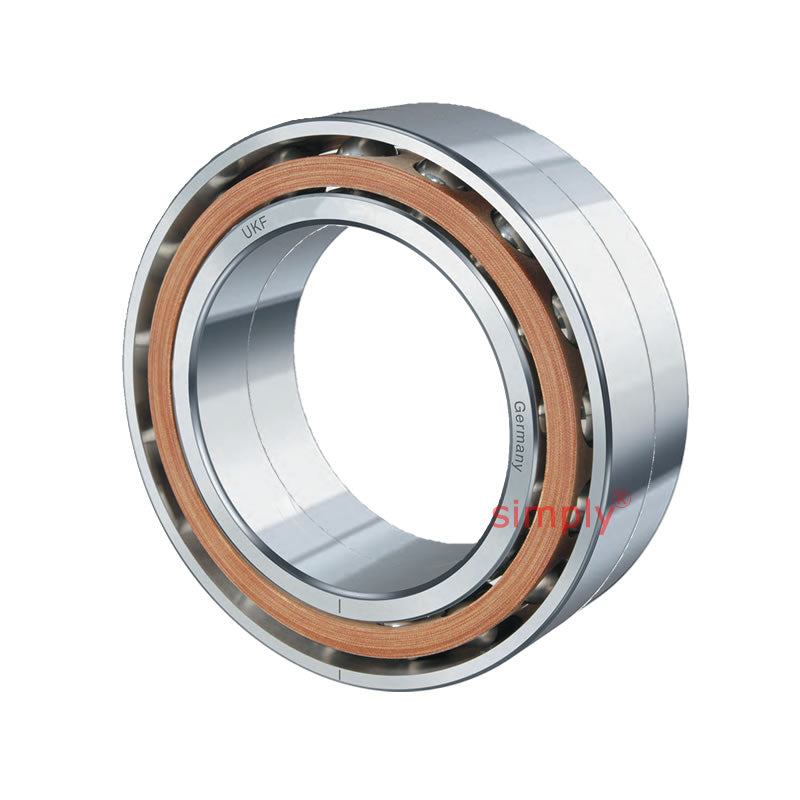

UKF 70USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
UKF 70USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Regular price
£298.17
ex VAT£357.80inc. VAT
Regular price
Sale price
£298.17
ex VAT£357.80
inc. VAT
Equivalent to: 70USOC15 .A21.0/I.M
In stock
Price Break
10+
£265.37
19+
£250.46
29+
£247.48
39+
£244.50
49+
£241.52
74+
£238.54
99+
£223.63
199+
£220.65
249+
£217.66
499+
£214.68
999+
£208.72
Couldn't load pickup availability
Description
Description
Equivalent: 70USOC15 .A21.0/I.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 18mm |
| Dynamic load Co | 3960 N |
| Static load C | 7700 N |
| Speed in Grease | 52500 rpm |
| Speed in Oil | 81200 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.05 kg |
