SKU: 7012CTRDUDLP3-NSK

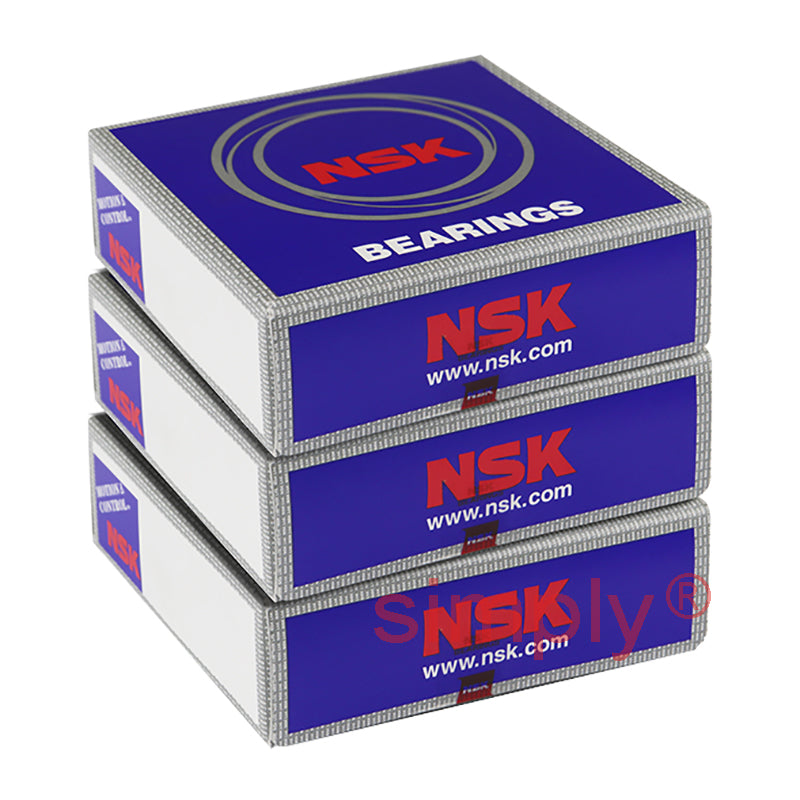

NSK 7012CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)

NSK 7012CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 3)
Regular price £622.25 ex VAT£746.70inc. VAT
Regular price Sale price £622.25 ex VAT£746.70 inc. VAT
Sale Sold out

In stock

Price Break
3+ £553.80
5+ £522.69
10+ £516.47
25+ £510.25
49+ £504.02
74+ £497.80
99+ £466.69
199+ £460.47
249+ £454.24
499+ £448.02
999+ £435.58
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.215kg
