SKU: 7011A5TRV1VDULP3-NSK

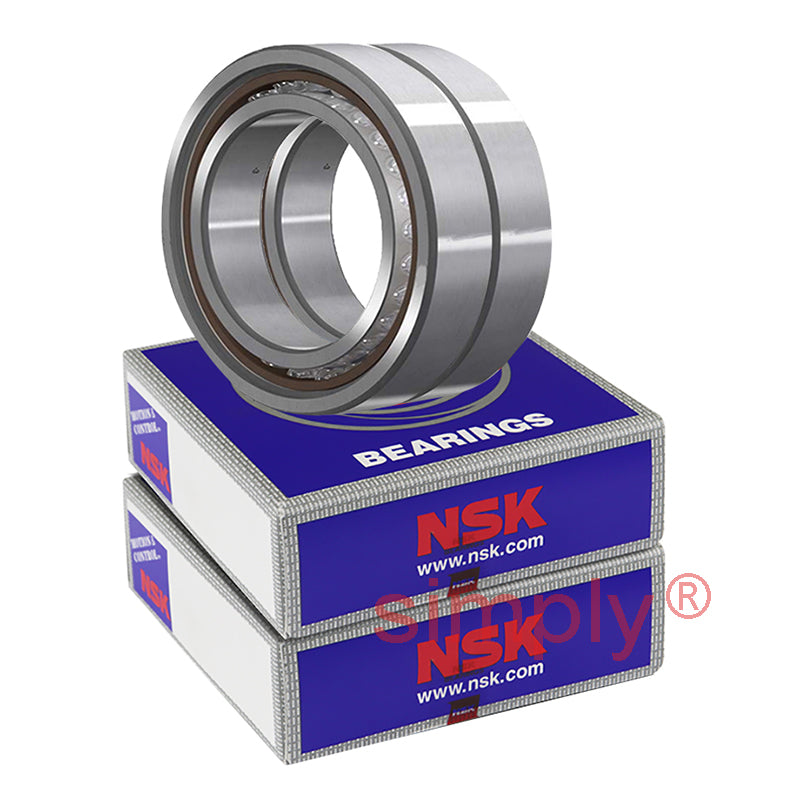

NSK 7011A5TRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 55x90x18mm (Set of 2)

NSK 7011A5TRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 55x90x18mm (Set of 2)
Regular price £490.30 ex VAT£588.36inc. VAT
Regular price Sale price £490.30 ex VAT£588.36 inc. VAT
Sale Sold out

In stock

Price Break
3+ £436.37
5+ £411.86
10+ £406.95
25+ £402.05
49+ £397.15
74+ £392.24
99+ £367.73
199+ £362.82
249+ £357.92
499+ £353.02
999+ £343.21
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 34Kn
C<sub>or</sub> 27.2kN
Axial load Kn 21.8 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 25.9mm
Max speed in grease 13800 rpm
Max speed in oil 20700 rpm
--- Fitting dimensions
d<sub>a min</sub> 62mm
D<sub>a max</sub> 83mm
D<sub>b max</sub> 85mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.766kg
