SKU: 7008CTRV1VDULP3-NSK

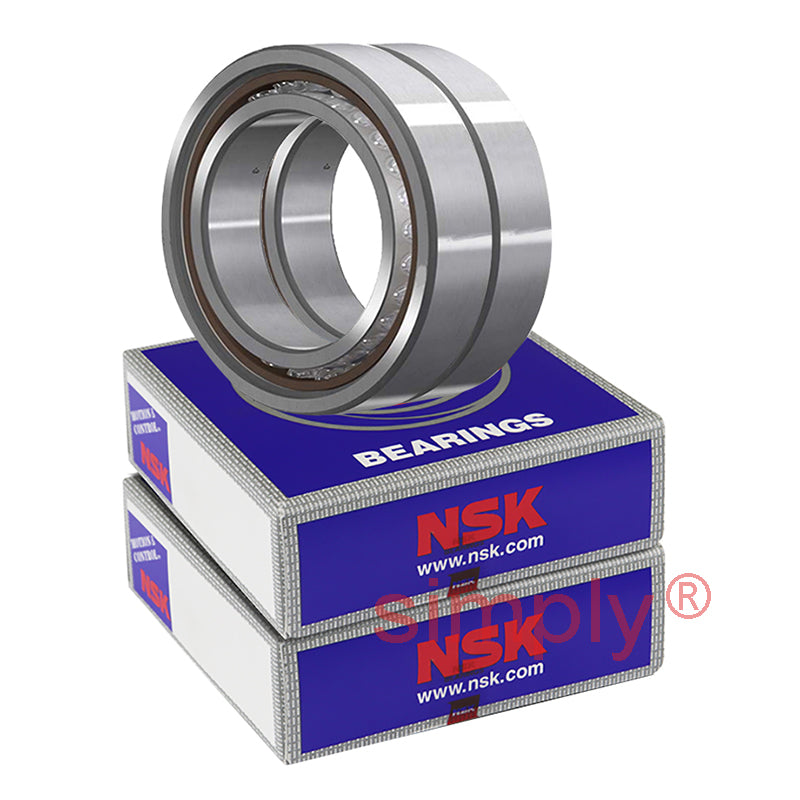

NSK 7008CTRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)

NSK 7008CTRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)
Regular price £368.85 ex VAT£442.62inc. VAT
Regular price Sale price £368.85 ex VAT£442.62 inc. VAT
Sale Sold out

In stock

Price Break
3+ £328.28
5+ £309.84
10+ £306.15
25+ £302.46
49+ £298.77
74+ £295.08
99+ £276.64
199+ £272.95
249+ £269.26
499+ £265.57
999+ £258.20
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 15mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 21.6Kn
C<sub>or</sub> 15.9kN
Axial load Kn 10.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.4
Effective diameter 14.7mm
Max speed in grease 21300 rpm
Max speed in oil 32500 rpm
--- Fitting dimensions
d<sub>a min</sub> 46mm
D<sub>a max</sub> 62mm
D<sub>b max</sub> 63mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.378kg
