• NTN 6915LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x105x16mm
1 1

SKU: 6915LLB/2AS-NTN

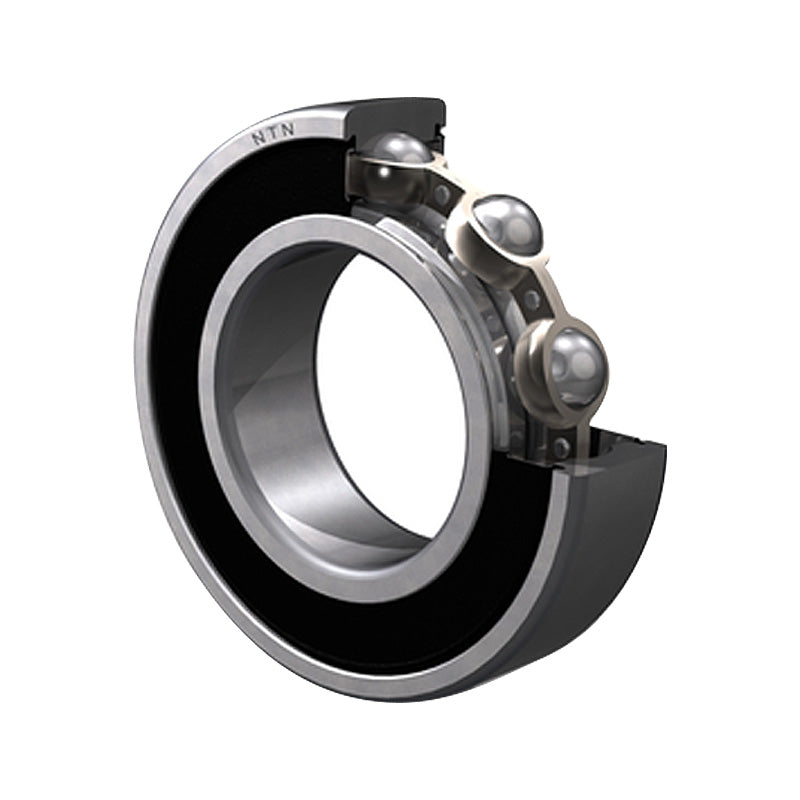

NTN 6915LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x105x16mm

NTN 6915LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x105x16mm
£67.35 ex VAT£80.82inc. VAT
£67.35 ex VAT£80.82 inc. VAT
Sale Sold out

Equivalent to: 6915LLBCM 61915LLBCM 6915LLB 61915LLB 69152NKE 6915VV 69152RSL 69152RZ

In stock

Price Break
3+ £59.94
5+ £56.57
10+ £55.90
25+ £55.23
49+ £54.55
74+ £53.88
99+ £50.51
199+ £49.84
249+ £49.17
499+ £48.49
999+ £47.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life


Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6915LLBCM 61915LLBCM 6915LLB 61915LLB 69152NKE 6915VV 69152RSL 69152RZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Outside Diameter:
105mm
Width:
16mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 75mm
D 105mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 27 kN
C<sub>or</sub> 22.6 kN
C<sub>u</sub> 1.52 kN
f<sub>0</sub> 16.5 kN
Grease 6100 rpm
Oil 7200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 80mm
d<sub>a</sub> Max. 82.5mm
D<sub>a</sub> Max. 100mm
r<sub>as</sub> Max. 1mm
Weight 0.353 kg
