SKU: 6913C3-NSK

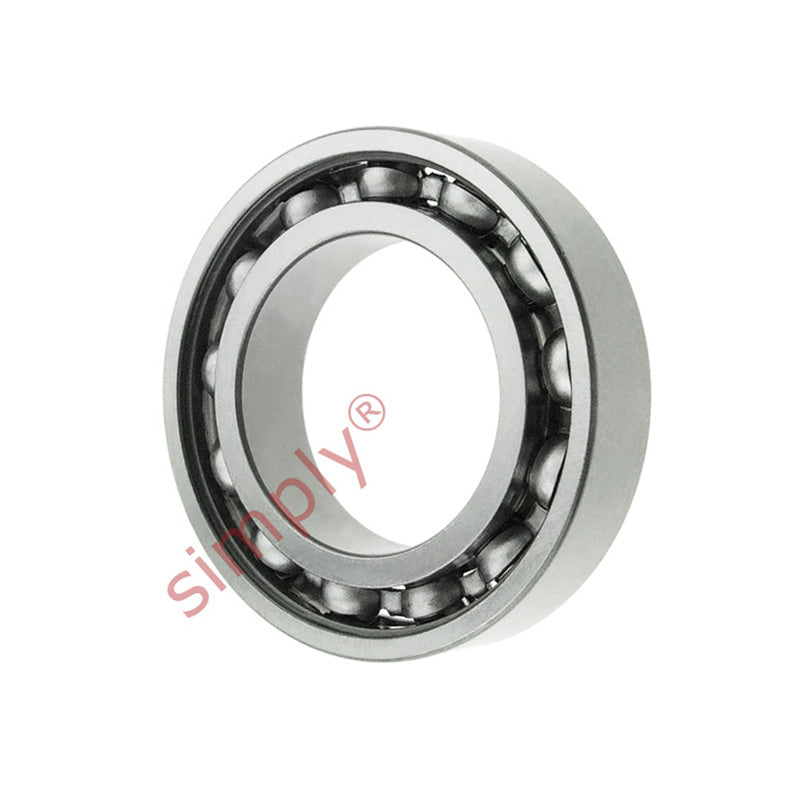

NSK 6913C3 Thin Section Open Type Deep Groove Ball Bearing 65x90x13mm
NSK 6913C3 Thin Section Open Type Deep Groove Ball Bearing 65x90x13mm
Regular price
£86.77
ex VAT£104.12inc. VAT
Regular price
Sale price
£86.77
ex VAT£104.12
inc. VAT
Equivalent to: 61913C3
In stock
Price Break
4+
£77.23
10+
£72.89
20+
£72.02
30+
£71.15
50+
£70.28
75+
£69.42
100+
£65.08
200+
£64.21
250+
£63.34
500+
£62.48
1000+
£60.74
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61913C3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 17400 N (1770 kgf) |
| Static load Cor | 16100 N (1640 kgf) |
| Factor | 16.6 |
| Speed in grease | 7100 rpm |
| Speed in oil | 8500 rpm |
| Mass | 0.218 kg |
