SKU: 6908LLB/5K-NTN

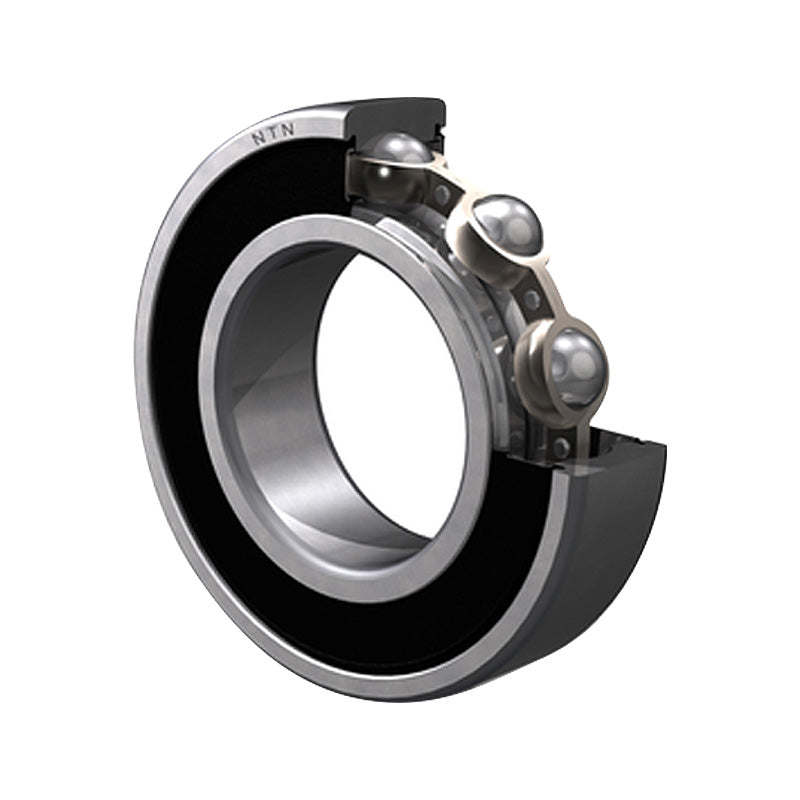

NTN 6908LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 40x62x12mm
NTN 6908LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 40x62x12mm
Regular price
£51.11
ex VAT£61.33inc. VAT
Regular price
Sale price
£51.11
ex VAT£61.33
inc. VAT
Equivalent to: 6908LLBCM 61908LLBCM 6908LLB 61908LLB 69082NKE 6908VV 69082RSL 69082RZ
In stock
Price Break
3+
£45.49
5+
£42.93
10+
£42.42
25+
£41.91
49+
£41.40
74+
£40.89
99+
£38.33
199+
£37.82
249+
£37.31
499+
£36.80
999+
£35.78
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6908LLBCM 61908LLBCM 6908LLB 61908LLB 69082NKE 6908VV 69082RSL 69082RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 62mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 13.5 kN |
| C<sub>or</sub> | 8.9 kN |
| C<sub>u</sub> | 0.645 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 44mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 58mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.11 kg |
