SKU: 6908DDU-NSK

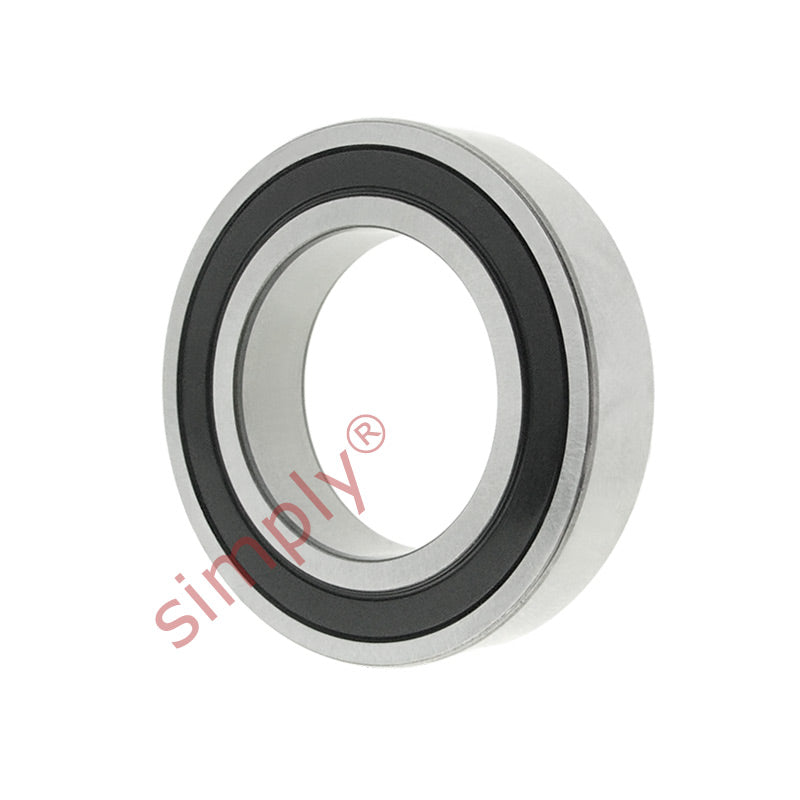

NSK 6908DDU Thin Section Rubber Sealed Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908NSE 6908DU 6908RS 6908RSH 6908P 6908RSR 6908LU 61908NSE 61908DU 61908RS 61908RSH 61908P 61908RSR 61908LU 69082NSE 69082RS 69082RS1 69082RSH 6908PP 69082RSR 69082RSR 619082NSE 61908DDU 619082RS 619082RS1 619082RSH 61908PP 619082RSR 61908LLU
In stock
Price Break
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6908NSE 6908DU 6908RS 6908RSH 6908P 6908RSR 6908LU 61908NSE 61908DU 61908RS 61908RSH 61908P 61908RSR 61908LU 69082NSE 69082RS 69082RS1 69082RSH 6908PP 69082RSR 69082RSR 619082NSE 61908DDU 619082RS 619082RS1 619082RSH 61908PP 619082RSR 61908LLU
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 13700 N (1390 kgf) |
| Static load Cor | 10000 N (1020 kgf) |
| Factor | 15.7 |
| Speed in grease | 6300 rpm |
| Speed in oil | 13000 rpm |
| Weight | 0.112 kg |
