SKU: 6907-NTN

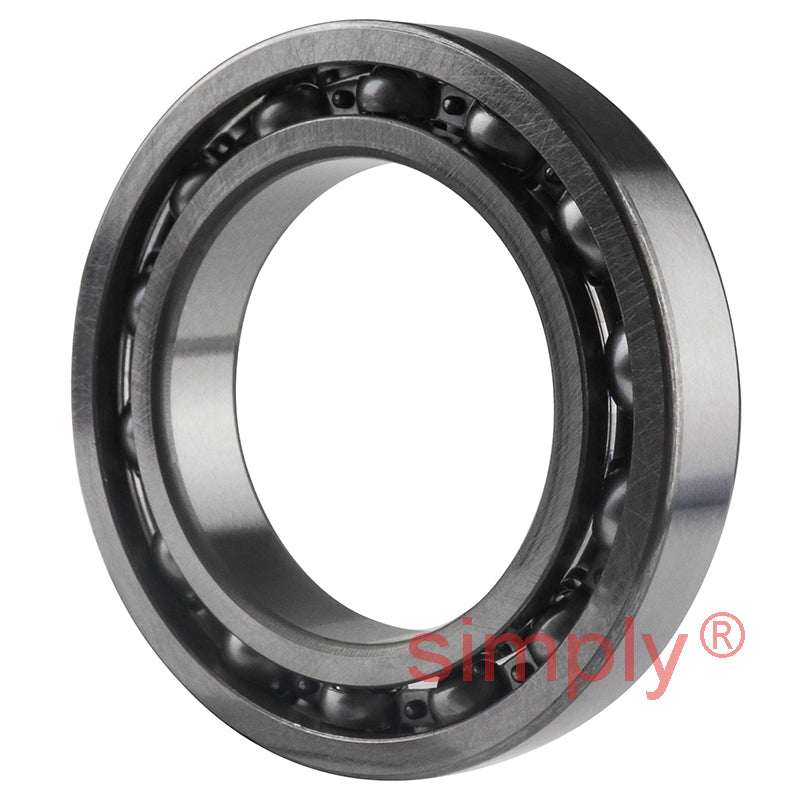

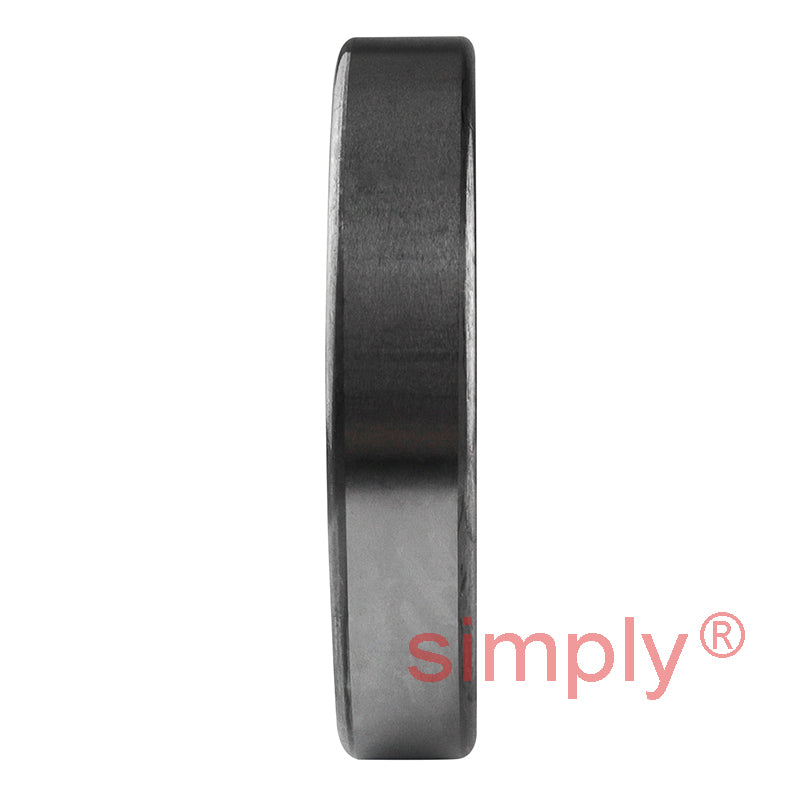

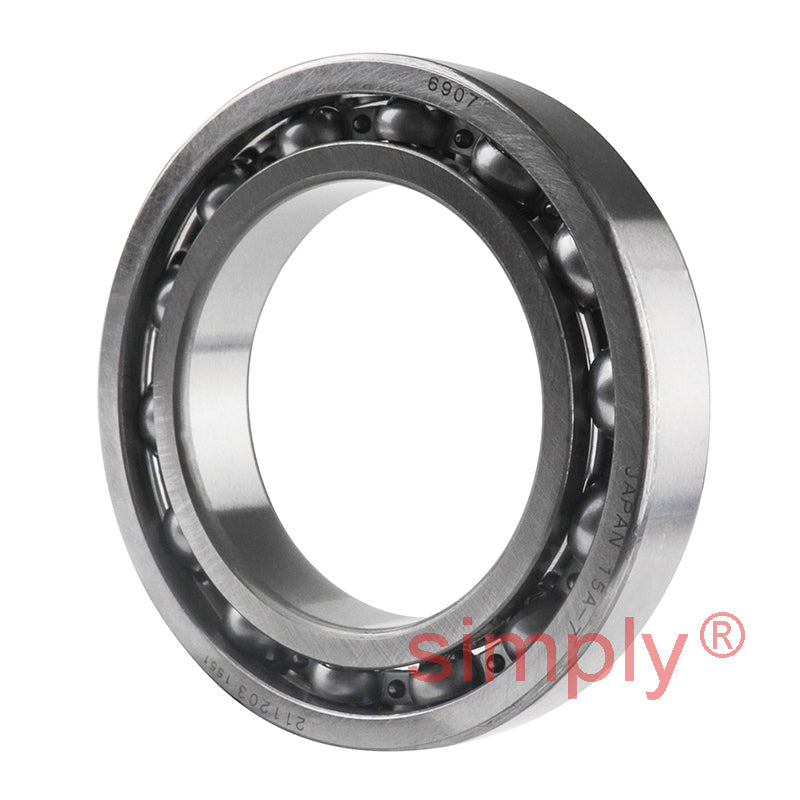

NTN 6907 Open Type Deep Groove Ball Bearing 35x55x10mm
NTN 6907 Open Type Deep Groove Ball Bearing 35x55x10mm
Regular price
£54.52
ex VAT£65.42inc. VAT
Regular price
Sale price
£54.52
ex VAT£65.42
inc. VAT
Equivalent to: 6907CM 61907CM 9307K 61907 61907S AY35
In stock
Price Break
3+
£48.52
5+
£45.80
10+
£45.25
25+
£44.71
49+
£44.16
74+
£43.62
99+
£40.89
199+
£40.34
249+
£39.80
499+
£39.25
999+
£38.16
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6907CM 61907CM 9307K 61907 61907S AY35
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 55mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 6.85 kN |
| C<sub>u</sub> | 0.495 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 12000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 39mm |
| D<sub>a</sub> Max. | 51mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.074 kg |
