SKU: 6807-NSK

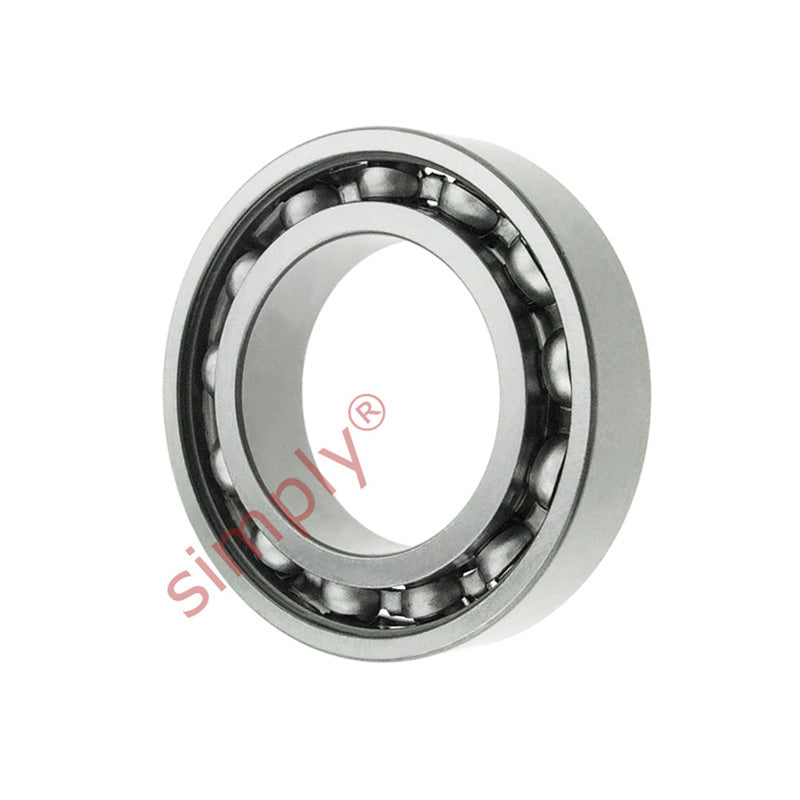

NSK 6807 Thin Section Open Type Deep Groove Ball Bearing 35x47x7mm
NSK 6807 Thin Section Open Type Deep Groove Ball Bearing 35x47x7mm
Regular price
£17.21
ex VAT£20.65inc. VAT
Regular price
Sale price
£17.21
ex VAT£20.65
inc. VAT
Equivalent to: 61807
In stock
Price Break
4+
£15.32
10+
£14.46
20+
£14.28
30+
£14.11
50+
£13.94
75+
£13.77
100+
£12.91
200+
£12.74
250+
£12.56
500+
£12.39
1000+
£12.05
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61807
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4900 N (500 kgf) |
| Static load Cor | 4100 N (420 kgf) |
| Factor | 16.7 |
| Speed in grease | 14000 rpm |
| Speed in oil | 16000 rpm |
| Mass | 0.027 kg |
