SKU: 6806C3-NSK

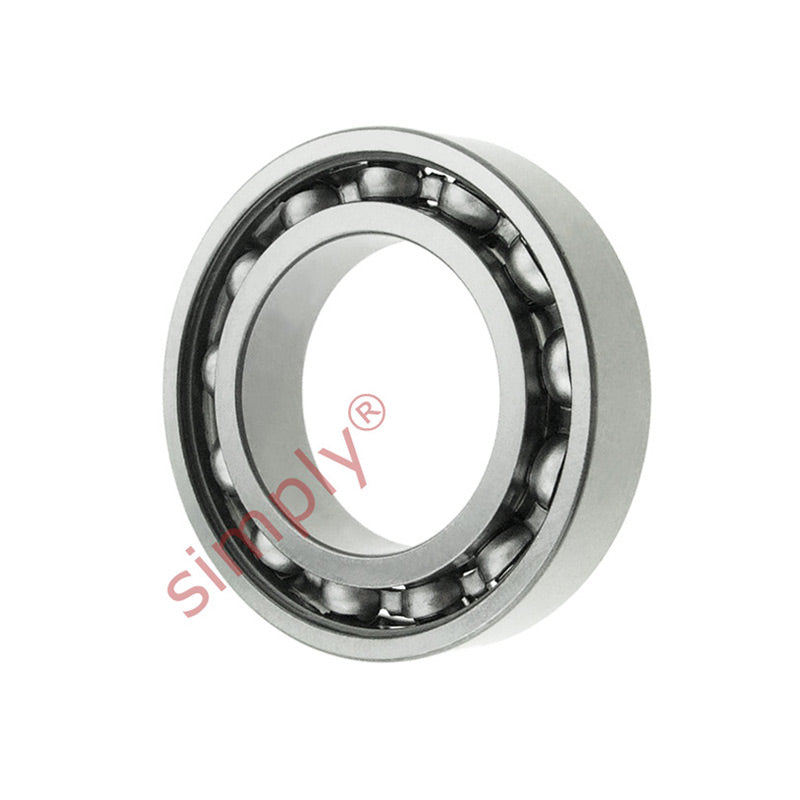

NSK 6806C3 Thin Section Open Type Deep Groove Ball Bearing 30x42x7mm
NSK 6806C3 Thin Section Open Type Deep Groove Ball Bearing 30x42x7mm
Regular price
£18.81
ex VAT£22.57inc. VAT
Regular price
Sale price
£18.81
ex VAT£22.57
inc. VAT
Equivalent to: 61806C3
In stock
Price Break
4+
£16.74
10+
£15.80
20+
£15.61
30+
£15.42
50+
£15.24
75+
£15.05
100+
£14.11
200+
£13.92
250+
£13.73
500+
£13.54
1000+
£13.17
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61806C3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 42mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4700 N (480 kgf) |
| Static load Cor | 3650 N (370 kgf) |
| Factor | 16.4 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| Mass | 0.024 kg |
