SKU: 6804-NSK

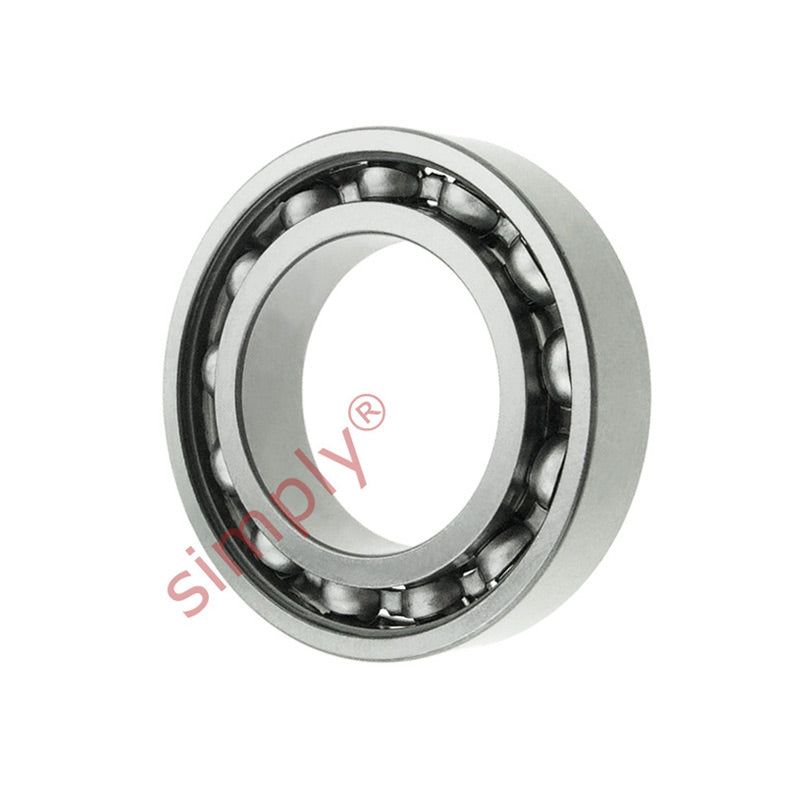

NSK 6804 Thin Section Open Type Deep Groove Ball Bearing 20x32x7mm
NSK 6804 Thin Section Open Type Deep Groove Ball Bearing 20x32x7mm
Regular price
£8.50
ex VAT£10.20inc. VAT
Regular price
Sale price
£8.50
ex VAT£10.20
inc. VAT
Equivalent to: 61804
In stock
Price Break
4+
£7.57
10+
£7.14
20+
£7.06
30+
£6.97
50+
£6.89
75+
£6.80
100+
£6.38
200+
£6.29
250+
£6.21
500+
£6.12
1000+
£5.95
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61804
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4000 N (410 kgf) |
| Static load Cor | 2470 N (252 kgf) |
| Factor | 15.5 |
| Speed in grease | 22000 rpm |
| Speed in oil | 26000 rpm |
| Mass | 0.017 kg |
