SKU: 6803-NSK

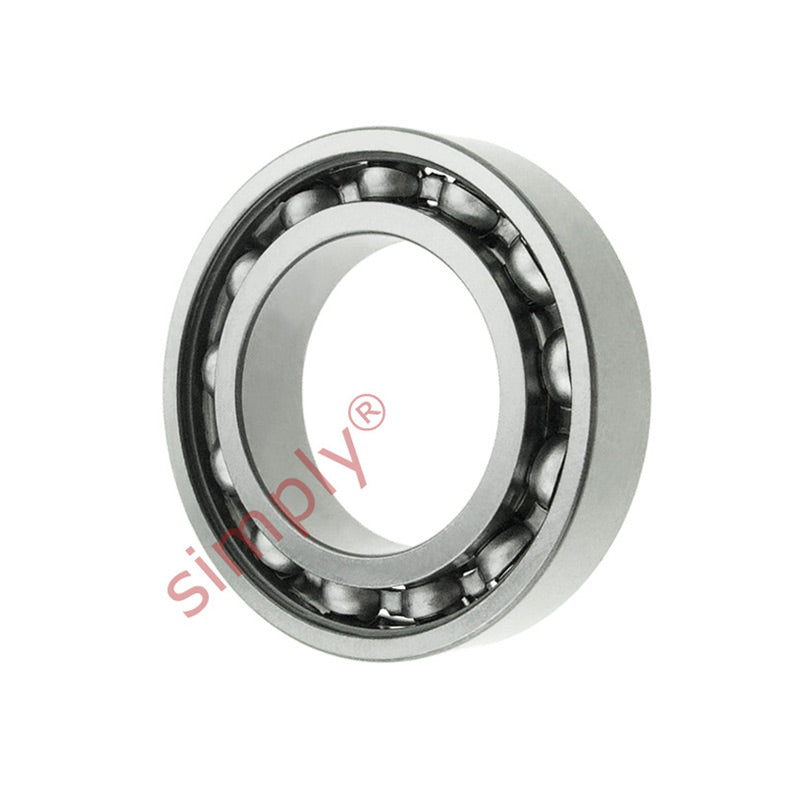

NSK 6803 Thin Section Open Type Deep Groove Ball Bearing 17x26x5mm
NSK 6803 Thin Section Open Type Deep Groove Ball Bearing 17x26x5mm
Regular price
£8.56
ex VAT£10.27inc. VAT
Regular price
Sale price
£8.56
ex VAT£10.27
inc. VAT
Equivalent to: 61803
In stock
Price Break
4+
£7.62
10+
£7.19
20+
£7.10
30+
£7.02
50+
£6.93
75+
£6.85
100+
£6.42
200+
£6.33
250+
£6.25
500+
£6.16
1000+
£5.99
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61803
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| r min | 0.3mm |
| Dynamic load Cr | 2630 N (268 kgf) |
| Static load Cor | 1570 N (160 kgf) |
| Factor | 15.7 |
| Speed in grease | 26000 rpm |
| Speed in oil | 30000 rpm |
| Mass | 0.007 kg |
