SKU: 6802-NSK

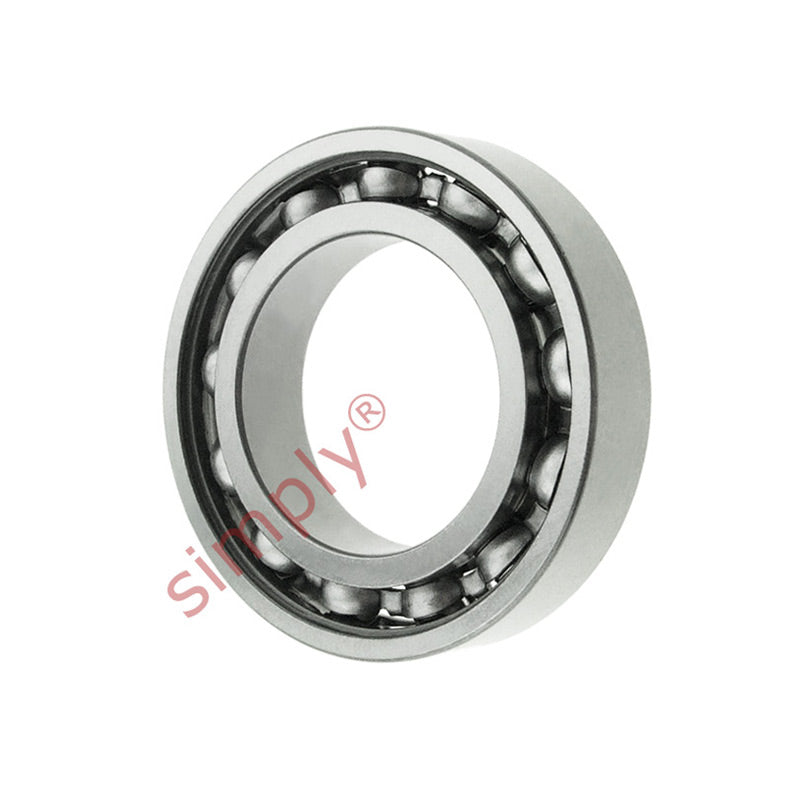

NSK 6802 Thin Section Open Type Deep Groove Ball Bearing 15x24x5mm
NSK 6802 Thin Section Open Type Deep Groove Ball Bearing 15x24x5mm
Regular price
£8.63
ex VAT£10.36inc. VAT
Regular price
Sale price
£8.63
ex VAT£10.36
inc. VAT
Equivalent to: 61802
In stock
Price Break
10+
£7.68
19+
£7.25
29+
£7.16
39+
£7.08
49+
£6.99
74+
£6.90
99+
£6.47
199+
£6.39
249+
£6.30
499+
£6.21
999+
£6.04
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61802
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| r min | 0.3mm |
| Dynamic load Cr | 2070 N (212 kgf) |
| Static load Cor | 1260 N (128 kgf) |
| Factor | 15.8 |
| Speed in grease | 28000 rpm |
| Speed in oil | 34000 rpm |
| Mass | 0.007 kg |
