SKU: 6411C3-NTN

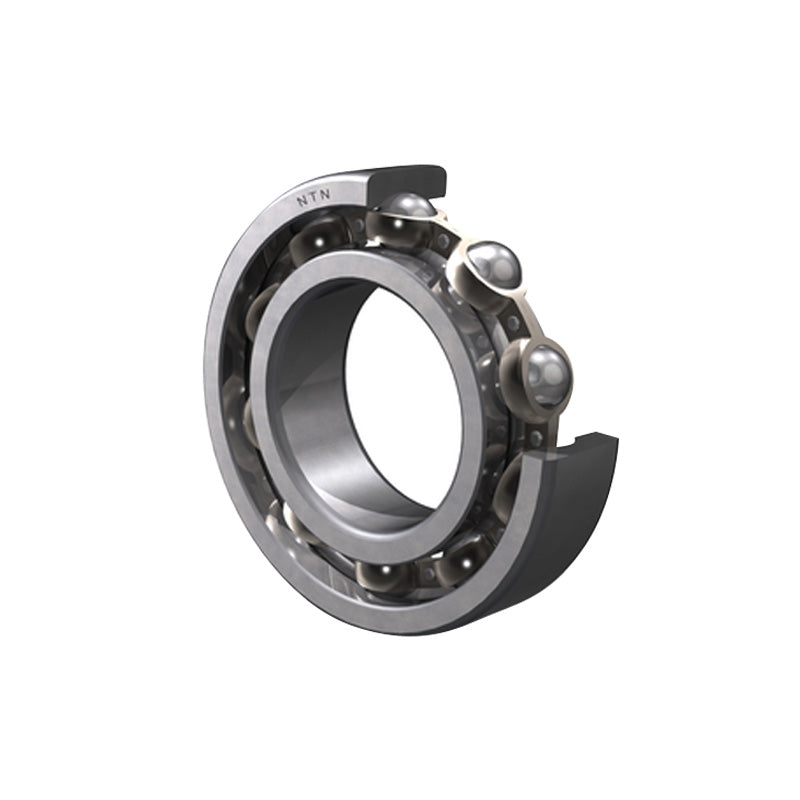

NTN 6411C3 Open Type Deep Groove Ball Bearing 55x140x33mm
NTN 6411C3 Open Type Deep Groove Ball Bearing 55x140x33mm
Regular price
£148.28
ex VAT£177.94inc. VAT
Regular price
Sale price
£148.28
ex VAT£177.94
inc. VAT
Equivalent to: 411KC3 1411C3 411SC3 6411C3 3411C3 9CC3
In stock
Price Break
3+
£131.97
5+
£124.56
10+
£123.07
25+
£121.59
49+
£120.11
74+
£118.62
99+
£111.21
199+
£109.73
249+
£108.24
499+
£106.76
999+
£103.80
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 411KC3 1411C3 411SC3 6411C3 3411C3 9CC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 140mm |
| B | 33mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 98.5 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 4.2 kN |
| f<sub>0</sub> | 12.7 kN |
| Grease | 5200 rpm |
| Oil | 6100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 66mm |
| D<sub>a</sub> Max. | 129mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.29 kg |
