SKU: 6320/C4-SKF

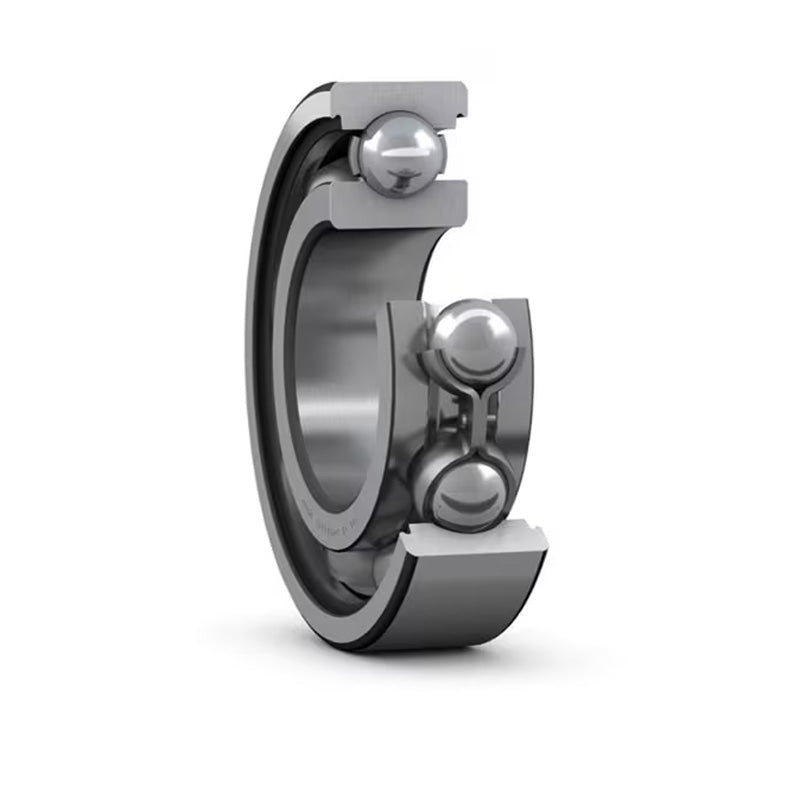

SKF 6320C4 Open Deep Groove Ball Bearing 100x215x47mm
SKF 6320C4 Open Deep Groove Ball Bearing 100x215x47mm
Regular price
£556.40
ex VAT£667.68inc. VAT
Regular price
Sale price
£556.40
ex VAT£667.68
inc. VAT
In stock
Price Break
4+
£495.20
10+
£467.38
20+
£461.82
30+
£456.25
50+
£450.69
75+
£445.12
100+
£417.30
200+
£411.74
250+
£406.18
500+
£400.61
1000+
£389.48
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| Dynamic load | 174 kN |
| Static load | 140 kn |
| Fatigue load limit Pu | 4.75 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4300 rpm |
| Weight | 7 kg |
| d1 | 136mm |
| D1 | 179mm |
| D2 | 184mm |
| r1r2 min | 3mm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
