SKU: 6319LLB/2AS-NTN

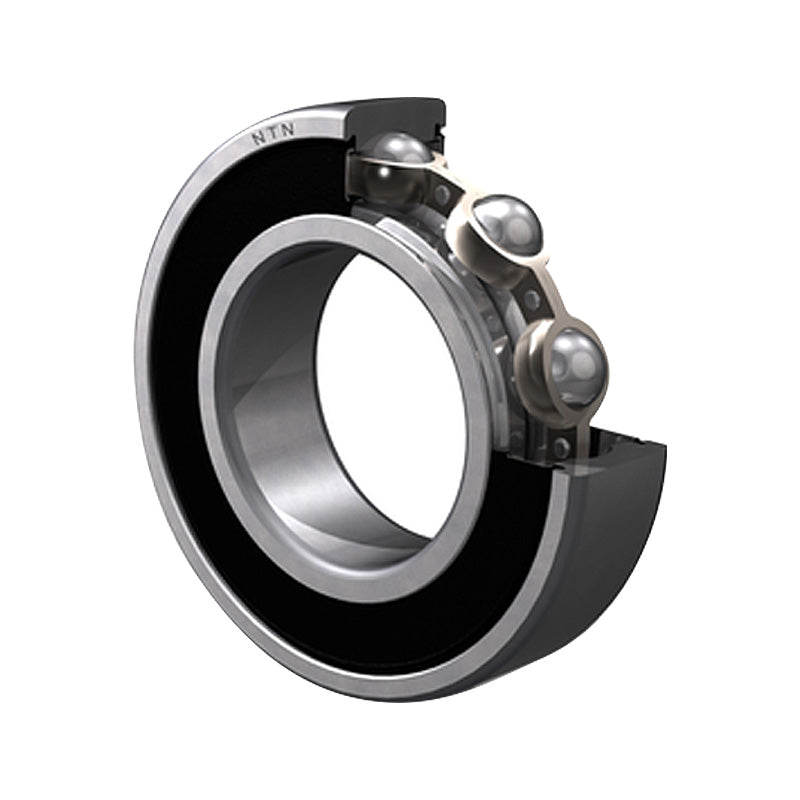

NTN 6319LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 95x200x45mm

NTN 6319LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 95x200x45mm
Regular price £211.14 ex VAT£253.37inc. VAT
Regular price Sale price £211.14 ex VAT£253.37 inc. VAT
Sale Sold out

Equivalent to: 6319LLBCM 6319LLB 63192NKE 6319VV 63192RSL 63192RZ

In stock

Price Break
3+ £187.91
5+ £177.36
10+ £175.25
25+ £173.13
49+ £171.02
74+ £168.91
99+ £158.36
199+ £156.24
249+ £154.13
499+ £152.02
999+ £147.80
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 95mm
D 200mm
B 45mm
r<sub>s</sub> min 3mm
--- Loads angles and speeds
C<sub>r</sub> 169 kN
C<sub>or</sub> 119 kN
C<sub>u</sub> 7.65 kN
f<sub>0</sub> 13.3 kN
Grease 3300 rpm
Oil 3900 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 108mm
d<sub>a</sub> Max. 125mm
D<sub>a</sub> Max. 187mm
r<sub>as</sub> Max. 2.5mm
Weight 5.67 kg
