SKU: 6315/C4-SKF

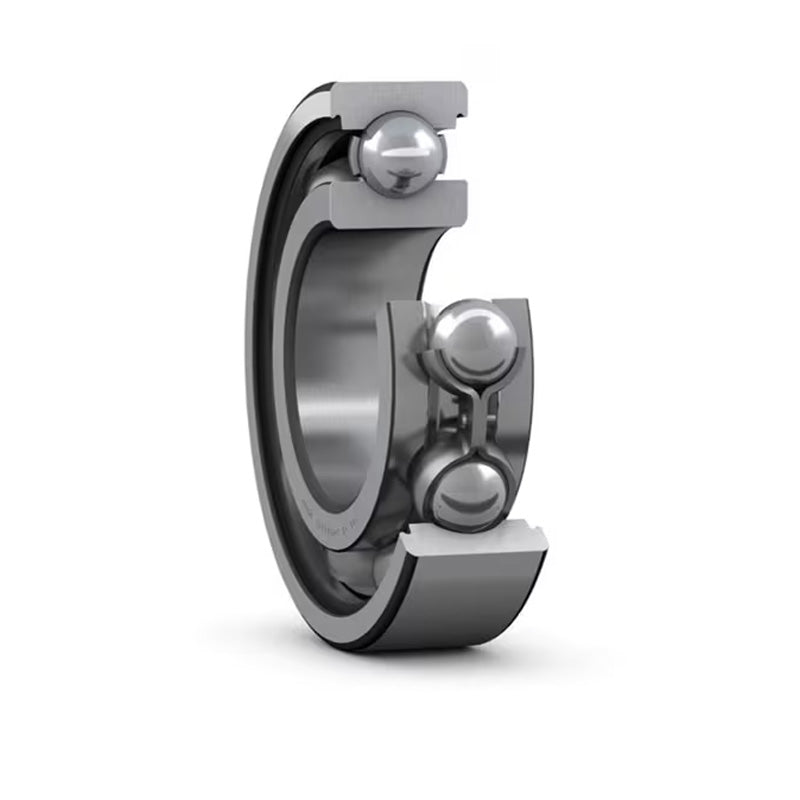

SKF 6315C4 Open Deep Groove Ball Bearing 75x160x37mm
SKF 6315C4 Open Deep Groove Ball Bearing 75x160x37mm
Regular price
£216.11
ex VAT£259.33inc. VAT
Regular price
Sale price
£216.11
ex VAT£259.33
inc. VAT
In stock
Price Break
4+
£192.34
10+
£181.54
20+
£179.37
30+
£177.21
50+
£175.05
75+
£172.89
100+
£162.09
200+
£159.92
250+
£157.76
500+
£155.60
1000+
£151.28
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load | 119 kN |
| Static load | 76.5 kn |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3 kg |
| d1 | 101mm |
| D1 | 133mm |
| D2 | 138mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| Da max | 148mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
