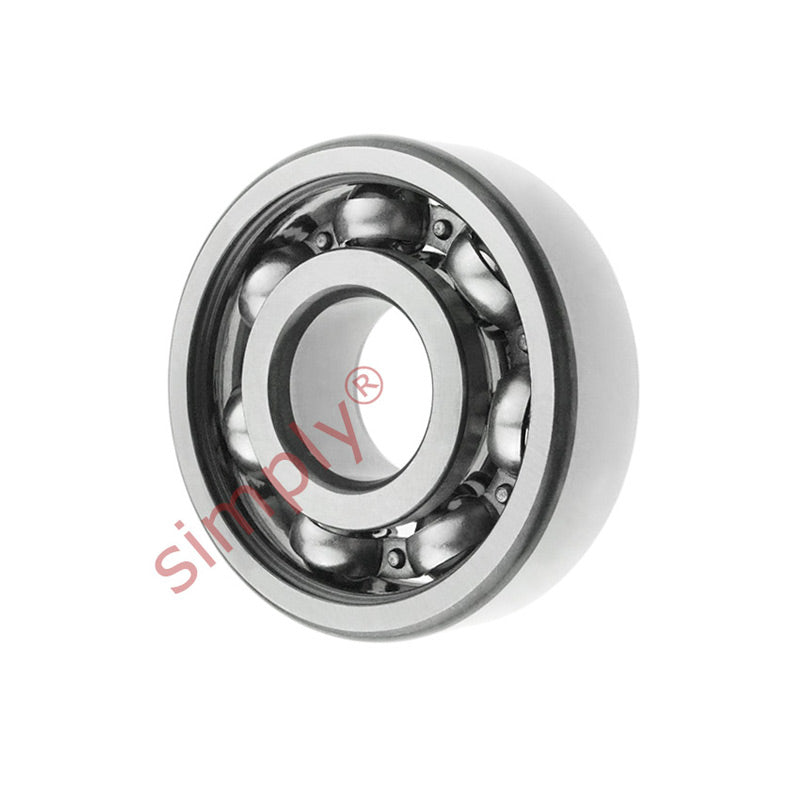

NTN 6314 Open Type Deep Groove Ball Bearing 70x150x35mm
NTN 6314 Open Type Deep Groove Ball Bearing 70x150x35mm
Regular price
£75.32
ex VAT£90.38inc. VAT
Regular price
Sale price
£75.32
ex VAT£90.38
inc. VAT
Equivalent to: 6314CM 314K 1314 314KS 6314 3314 15B
In stock
Price Break
3+
£67.03
5+
£63.27
10+
£62.52
25+
£61.76
49+
£61.01
74+
£60.26
99+
£56.49
199+
£55.74
249+
£54.98
499+
£54.23
999+
£52.72
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6314CM 314K 1314 314KS 6314 3314 15B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 150mm |
| B | 35mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 115 kN |
| C<sub>or</sub> | 68 kN |
| C<sub>u</sub> | 5.1 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 4600 rpm |
| Oil | 5400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 81mm |
| D<sub>a</sub> Max. | 139mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.52 kg |
