SKU: 6309/VA201-SKF

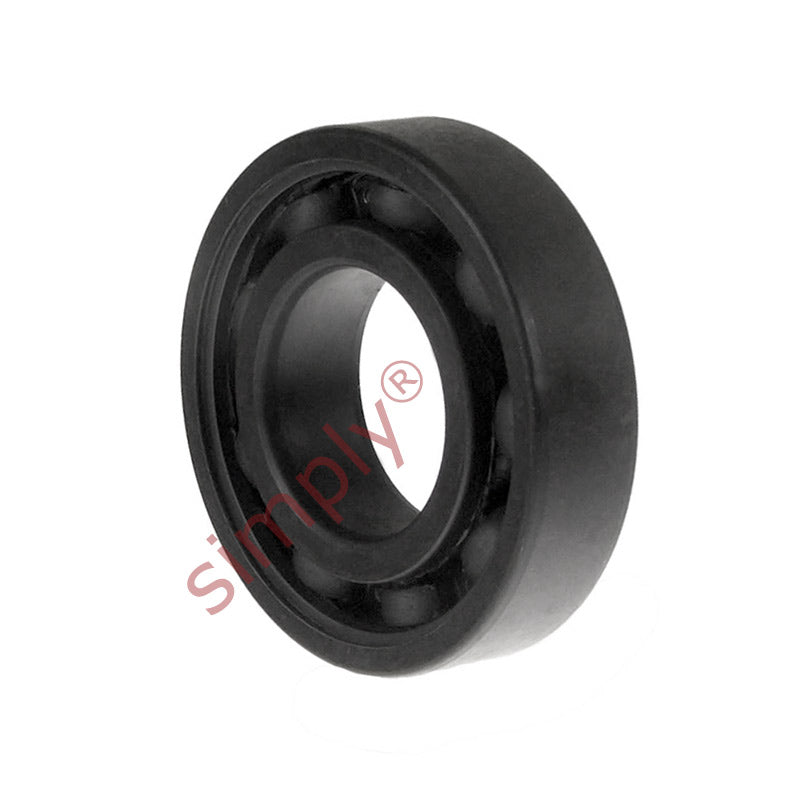

SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm
SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm
Regular price
£77.05
ex VAT£92.46inc. VAT
Regular price
Sale price
£77.05
ex VAT£92.46
inc. VAT
In stock
Price Break
10+
£68.57
19+
£64.72
29+
£63.95
39+
£63.18
49+
£62.41
74+
£61.64
99+
£57.79
199+
£57.02
249+
£56.25
499+
£55.48
999+
£53.94
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| d1 | 62.1mm |
| D2 | 86.7mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 31.5 kN |
| Weight | 0.83 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
