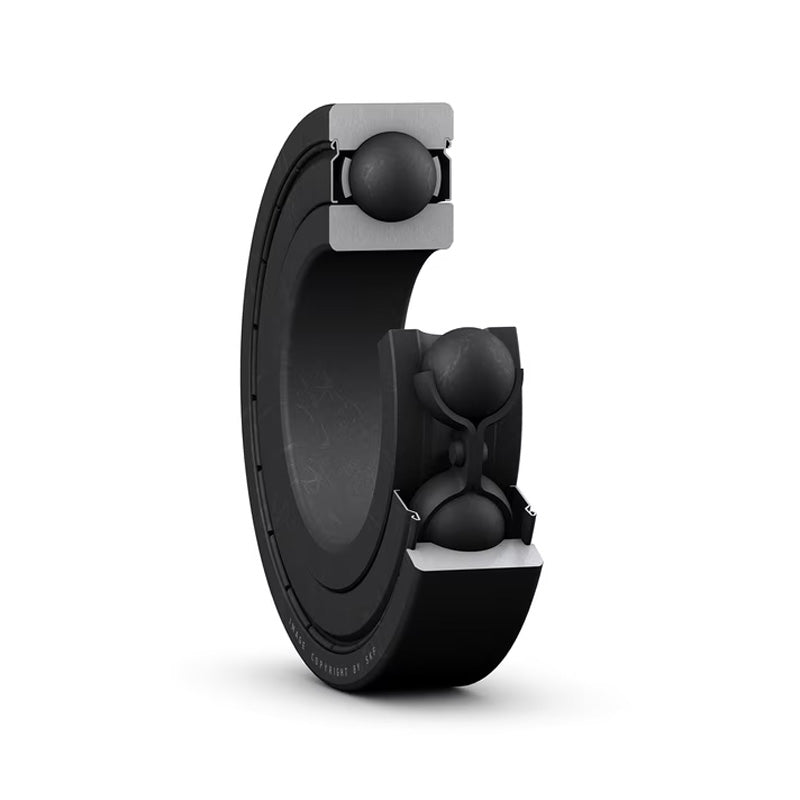

SKF 63052ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 25x62x17mm
SKF 63052ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 25x62x17mm
Regular price
£146.51
ex VAT£175.81inc. VAT
Regular price
Sale price
£146.51
ex VAT£175.81
inc. VAT
In stock
Price Break
10+
£130.39
19+
£123.07
29+
£121.60
39+
£120.14
49+
£118.67
74+
£117.21
99+
£109.88
199+
£108.42
249+
£106.95
499+
£105.49
999+
£102.56
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| d1 | 36.6mm |
| D2 | 52.7mm |
| r1r2 | 1.1mm |
| Basic load rating Co | 11.6 kN |
| Weight | 0.22 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
