SKU: 6304DDUC3-NSK

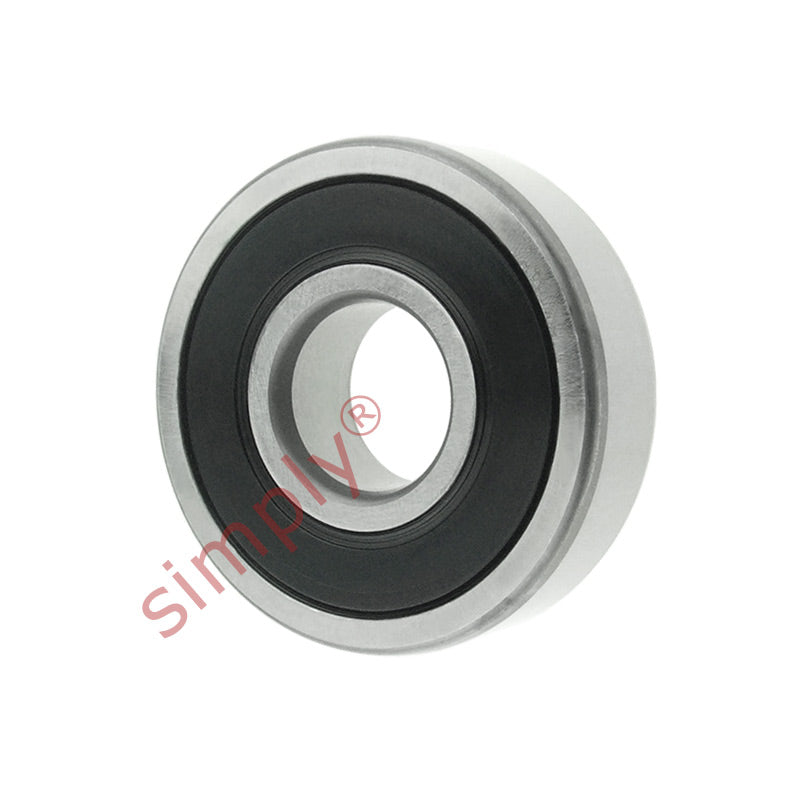

NSK 6304DDUC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
NSK 6304DDUC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Regular price
£6.58
ex VAT£7.90inc. VAT
Regular price
Sale price
£6.58
ex VAT£7.90
inc. VAT
Equivalent to: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 63042RSC3 63042RS1C3 63042RSHC3 6304PPC3 63042RSRC3 6304LLUC3
In stock
Price Break
4+
£5.86
10+
£5.53
20+
£5.46
30+
£5.40
50+
£5.33
75+
£5.26
100+
£4.94
200+
£4.87
250+
£4.80
500+
£4.74
1000+
£4.61
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 63042RSC3 63042RS1C3 63042RSHC3 6304PPC3 63042RSRC3 6304LLUC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| Dynamic load Cr | 15900 N (1620 kgf) |
| Static load Cor | 7900 N (805 kgf) |
| Factor | 12.4 |
| Speed in grease | 10000 rpm |
| Speed in oil | 17000 rpm |
| Weight | 0.145 kg |
