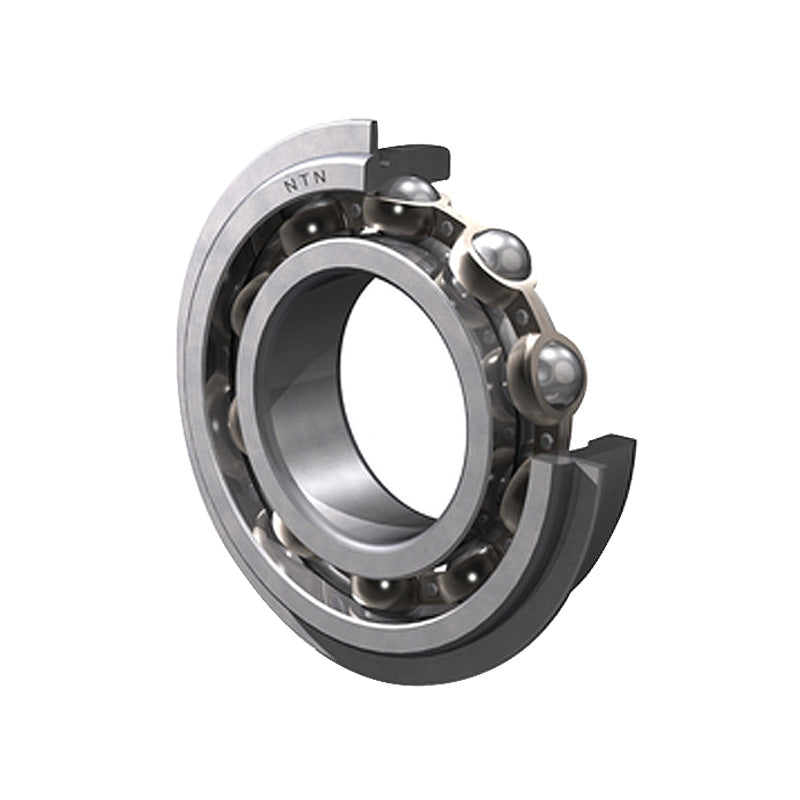

NTN 6302NR Open Type Deep Groove Ball Bearing with Snap Ring 15x42x13mm
NTN 6302NR Open Type Deep Groove Ball Bearing with Snap Ring 15x42x13mm
Regular price
£8.99
ex VAT£10.79inc. VAT
Regular price
Sale price
£8.99
ex VAT£10.79
inc. VAT
Equivalent to: 6302NRCM 302KG 302SG 43302
In stock
Price Break
10+
£8.00
19+
£7.55
29+
£7.46
39+
£7.37
49+
£7.28
74+
£7.19
99+
£6.74
199+
£6.65
249+
£6.56
499+
£6.47
999+
£6.29
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6302NRCM 302KG 302SG 43302
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 42mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.7 kN |
| C<sub>or</sub> | 5.45 kN |
| C<sub>u</sub> | 0.425 kN |
| f<sub>0</sub> | 12.3 kN |
| Grease | 17000 rpm |
| Oil | 21000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 39.75mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 46.3mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 20mm |
| d<sub>a</sub> Max. | 23mm |
| D<sub>a</sub> Max. | 37mm |
| D<sub>X</sub> (approx) | 47mm |
| C<sub>Y</sub> Max. | 2.9mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.082 kg |
