SKU: 6302-NTN

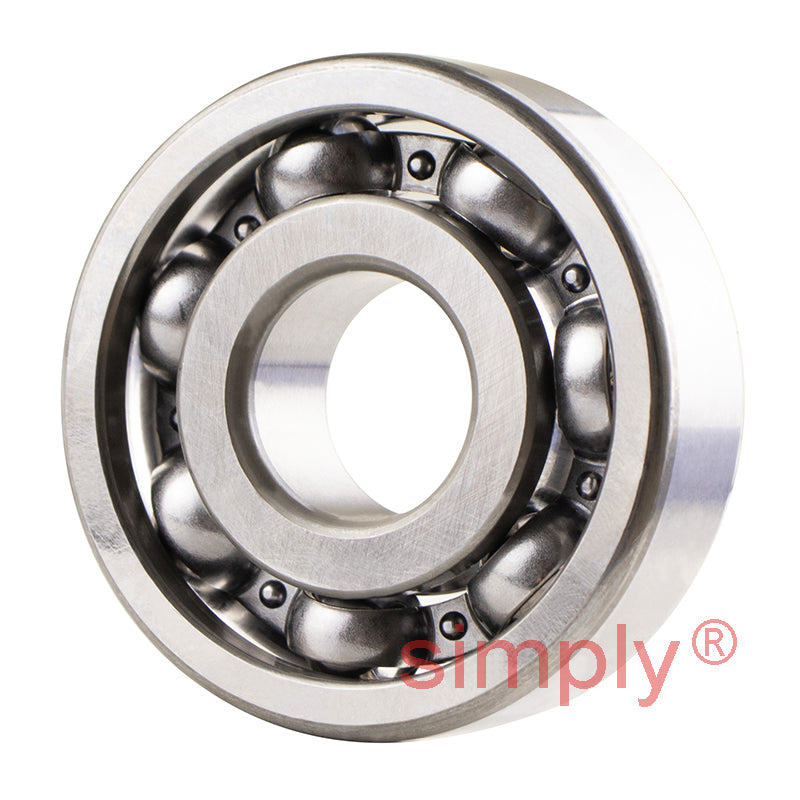

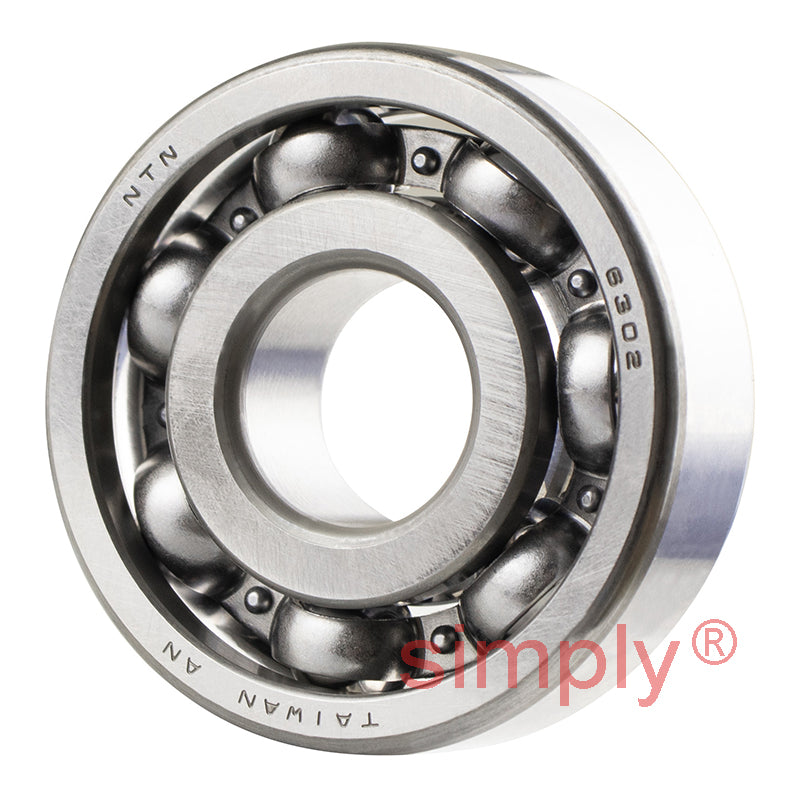

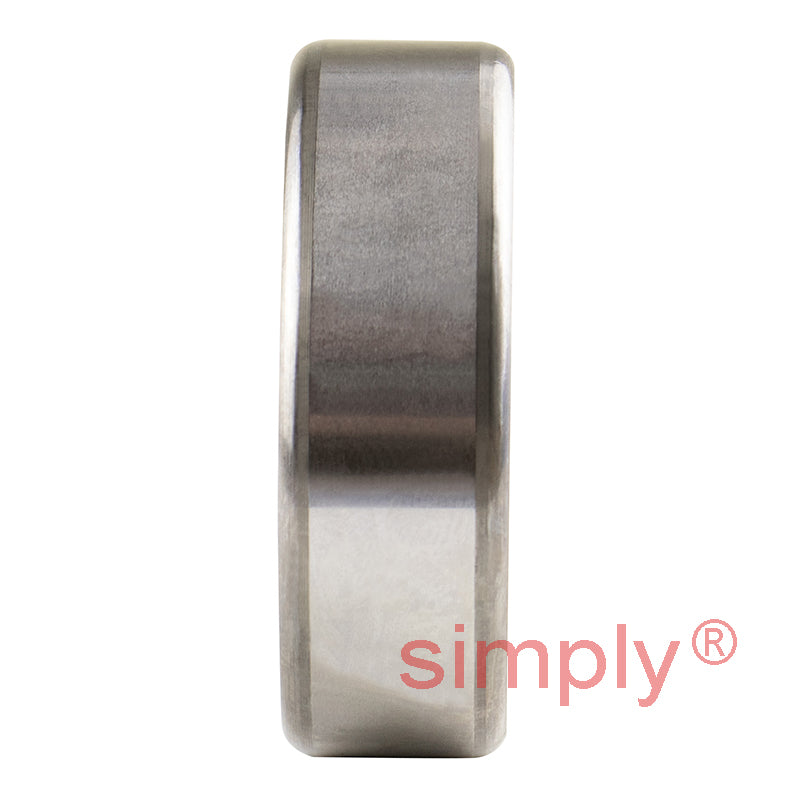

NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
Regular price
£6.10
ex VAT£7.32inc. VAT
Regular price
Sale price
£6.10
ex VAT£7.32
inc. VAT
Equivalent to: 6302CM 302K 1302 302KS 6302 3302 3B
In stock
Price Break
3+
£5.43
5+
£5.12
10+
£5.06
25+
£5.00
49+
£4.94
74+
£4.88
99+
£4.58
199+
£4.51
249+
£4.45
499+
£4.39
999+
£4.27
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6302CM 302K 1302 302KS 6302 3302 3B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 42mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.7 kN |
| C<sub>or</sub> | 5.45 kN |
| C<sub>u</sub> | 0.425 kN |
| f<sub>0</sub> | 12.3 kN |
| Grease | 17000 rpm |
| Oil | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 20mm |
| D<sub>a</sub> Max. | 37mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.082 kg |
