SKU: 6301-HT-330

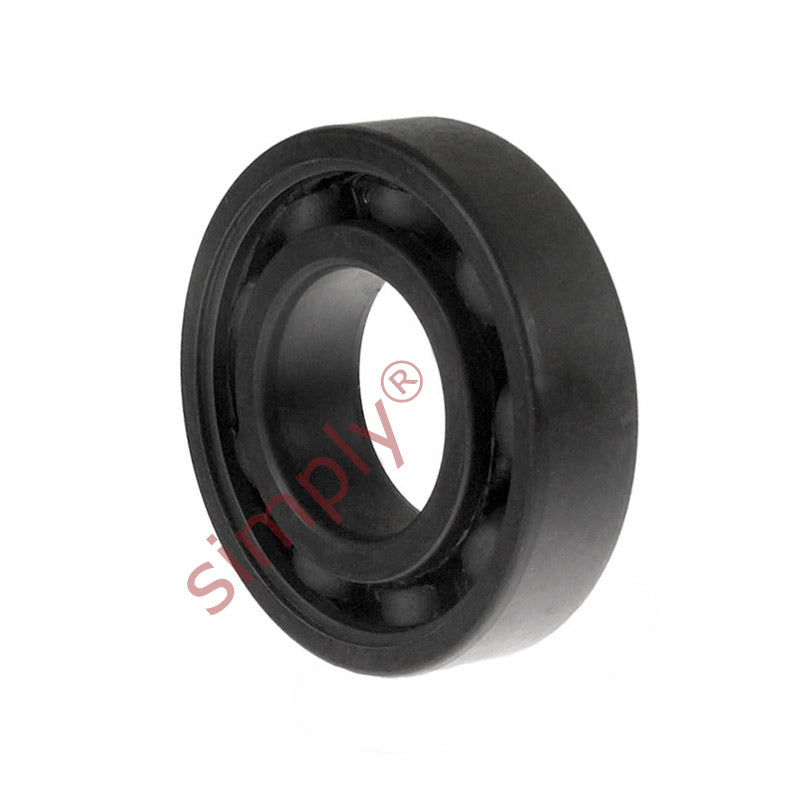

6301HT330 High Temp 330C Open Deep Groove Ball Bearing 12x37x12mm Max 220rpm
6301HT330 High Temp 330C Open Deep Groove Ball Bearing 12x37x12mm Max 220rpm
Regular price
£6.51
ex VAT£7.81inc. VAT
Regular price
Sale price
£6.51
ex VAT£7.81
inc. VAT
Equivalent to: 6301VA201 6301VA208 6301VA228
In stock
Price Break
10+
£5.79
19+
£5.47
29+
£5.40
39+
£5.34
49+
£5.27
74+
£5.21
99+
£4.88
199+
£4.82
249+
£4.75
499+
£4.69
999+
£4.56
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6301VA201 6301VA208 6301VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 12mm |
|---|---|
| Outside diameter D | 37mm |
| Width W | 12mm |
| Static load max | 2.4 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 220 rpm |
| Weight | 60 g |
