SKU: 63003-2RS-EU

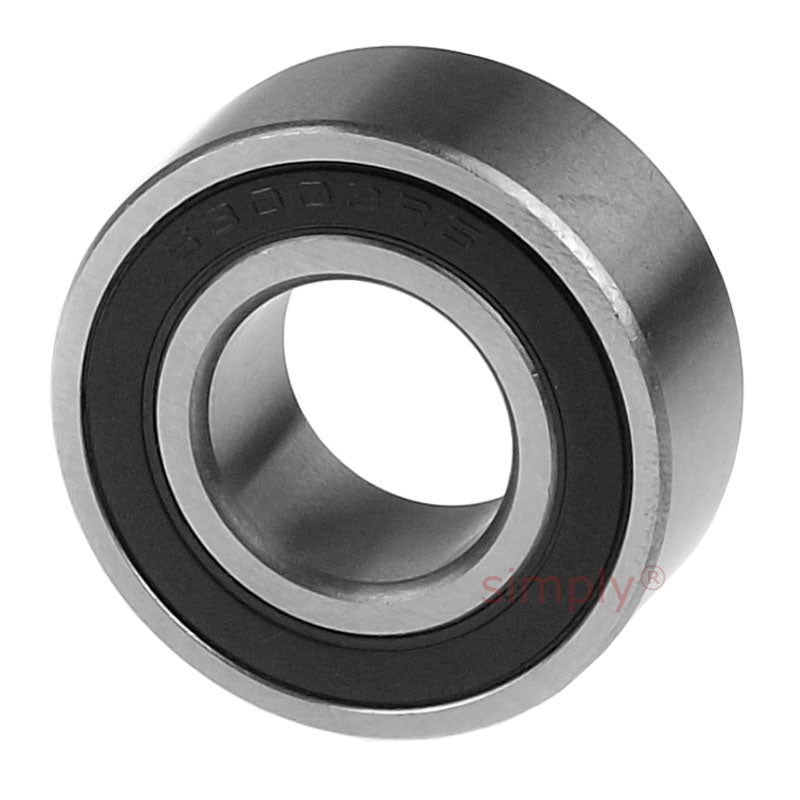

630032RS Budget Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
Equivalent to: 63003NSE 63003DU 63003RS 630032RSH 63003P 63003RSR 63003LU 630032NSE 63003DDU 63003PP 63003LLU 630032RS1 6300322RSH 630032RSR 630032RS 630032RSH 630032RS1
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 63003NSE 63003DU 63003RS 630032RSH 63003P 63003RSR 63003LU 630032NSE 63003DDU 63003PP 63003LLU 630032RS1 6300322RSH 630032RSR 630032RS 630032RSH 630032RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 14mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.05 kN |
| Static load Cor | 3.25 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 45000 rpm |
