SKU: 6224DDUC3-NSK

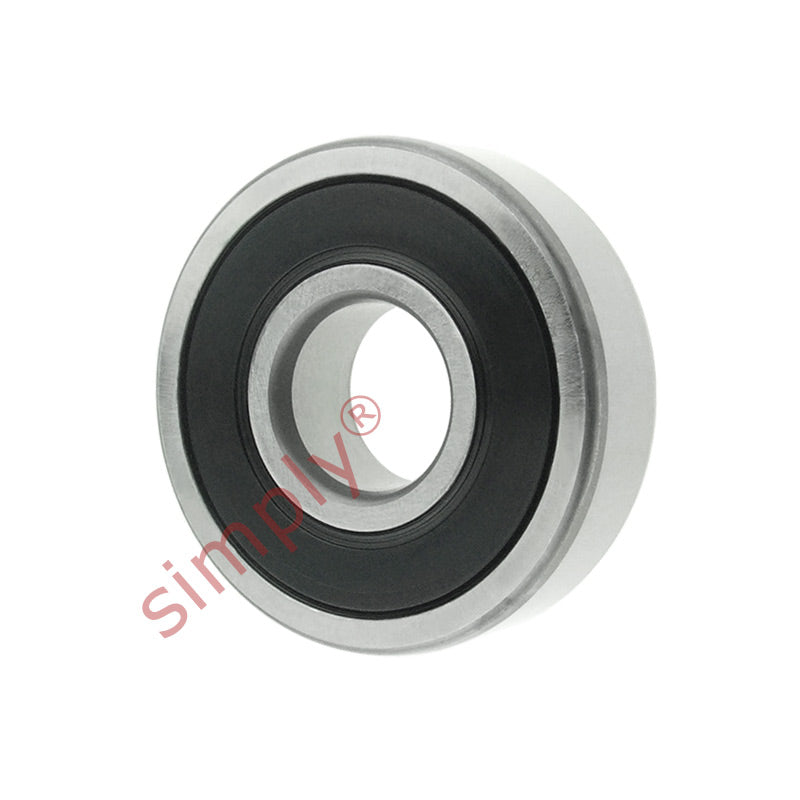

NSK 6224DDUC3 Rubber Sealed Deep Groove Ball Bearing 120x215x40mm
NSK 6224DDUC3 Rubber Sealed Deep Groove Ball Bearing 120x215x40mm
Regular price
£305.87
ex VAT£367.04inc. VAT
Regular price
Sale price
£305.87
ex VAT£367.04
inc. VAT
Equivalent to: 6224NSEC3 6224DUC3 6224RSC3 6224RSHC3 6224PC3 6224RSRC3 6224LUC3 62242NSEC3 62242RSC3 62242RS1C3 62242RSHC3 6224PPC3 62242RSRC3 6224LLUC3
In stock
Price Break
4+
£272.22
10+
£256.93
20+
£253.87
30+
£250.81
50+
£247.75
75+
£244.69
100+
£229.40
200+
£226.34
250+
£223.28
500+
£220.22
1000+
£214.11
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6224NSEC3 6224DUC3 6224RSC3 6224RSHC3 6224PC3 6224RSRC3 6224LUC3 62242NSEC3 62242RSC3 62242RS1C3 62242RSHC3 6224PPC3 62242RSRC3 6224LLUC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| r min | 2.1mm |
| Dynamic load Cr | 155000 N (15800 kgf) |
| Static load Cor | 131000 N (13400 kgf) |
| Factor | 14.4 |
| Speed in grease | 2000 rpm |
| Speed in oil | 3200 rpm |
| Weight | 5.29 kg |
