SKU: 6220/VA201-SKF

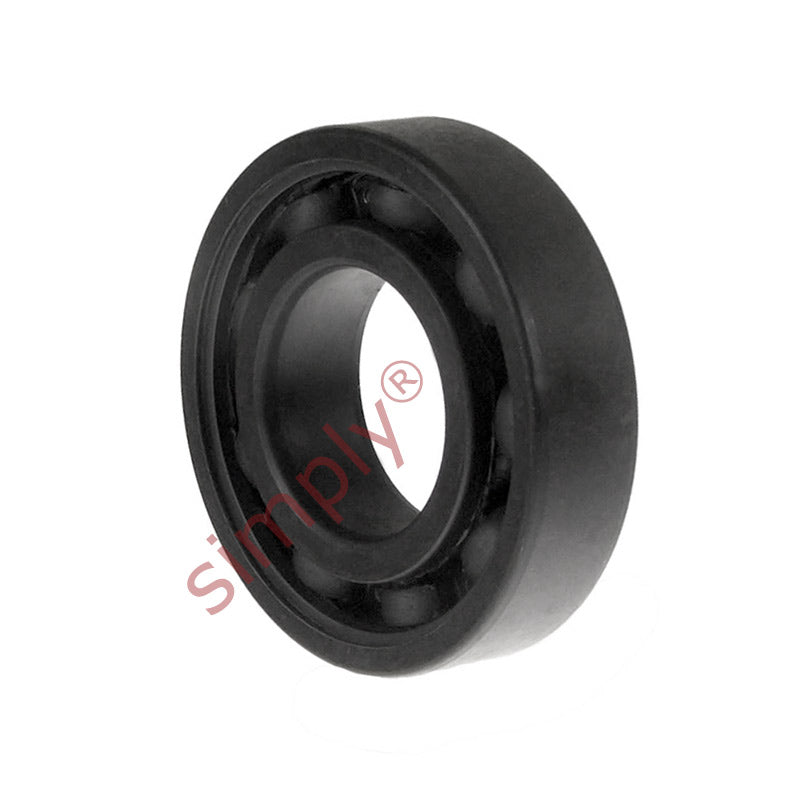

SKF 6220VA201 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
SKF 6220VA201 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
Regular price
£379.95
ex VAT£455.94inc. VAT
Regular price
Sale price
£379.95
ex VAT£455.94
inc. VAT
In stock
Price Break
10+
£338.16
19+
£319.16
29+
£315.36
39+
£311.56
49+
£307.76
74+
£303.96
99+
£284.96
199+
£281.16
249+
£277.36
499+
£273.56
999+
£265.97
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| d1 | 124mm |
| D2 | 160mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 93 kN |
| Weight | 3.15 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
