SKU: 6217NR-NTN

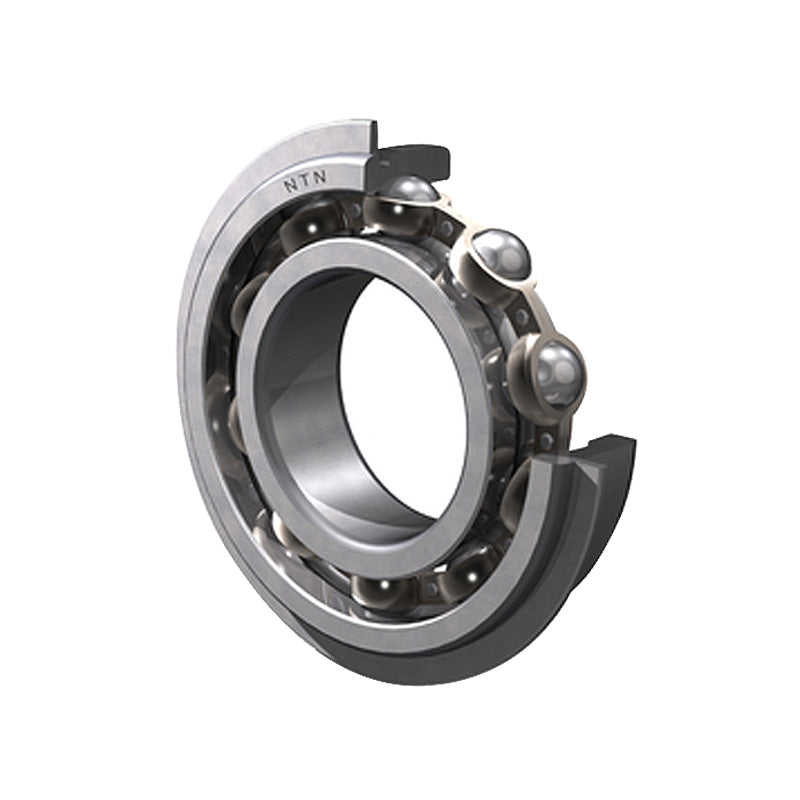

NTN 6217NR Open Type Deep Groove Ball Bearing with Snap Ring 85x150x28mm
NTN 6217NR Open Type Deep Groove Ball Bearing with Snap Ring 85x150x28mm
Regular price
£263.69
ex VAT£316.43inc. VAT
Regular price
Sale price
£263.69
ex VAT£316.43
inc. VAT
Equivalent to: 6217NRCM 217KG 217SG 43217
In stock
Price Break
3+
£234.68
5+
£221.50
10+
£218.86
25+
£216.23
49+
£213.59
74+
£210.95
99+
£197.77
199+
£195.13
249+
£192.49
499+
£189.86
999+
£184.58
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6217NRCM 217KG 217SG 43217
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 150mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 92 kN |
| C<sub>or</sub> | 64 kN |
| C<sub>u</sub> | 4.6 kN |
| f<sub>0</sub> | 14.7 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 145.24mm |
| a Max. | 4.9mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 159.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 94mm |
| d<sub>a</sub> Max. | 103mm |
| D<sub>a</sub> Max. | 141mm |
| D<sub>X</sub> (approx) | 162mm |
| C<sub>Y</sub> Max. | 7.3mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.79 kg |
