SKU: 6216NR-NTN

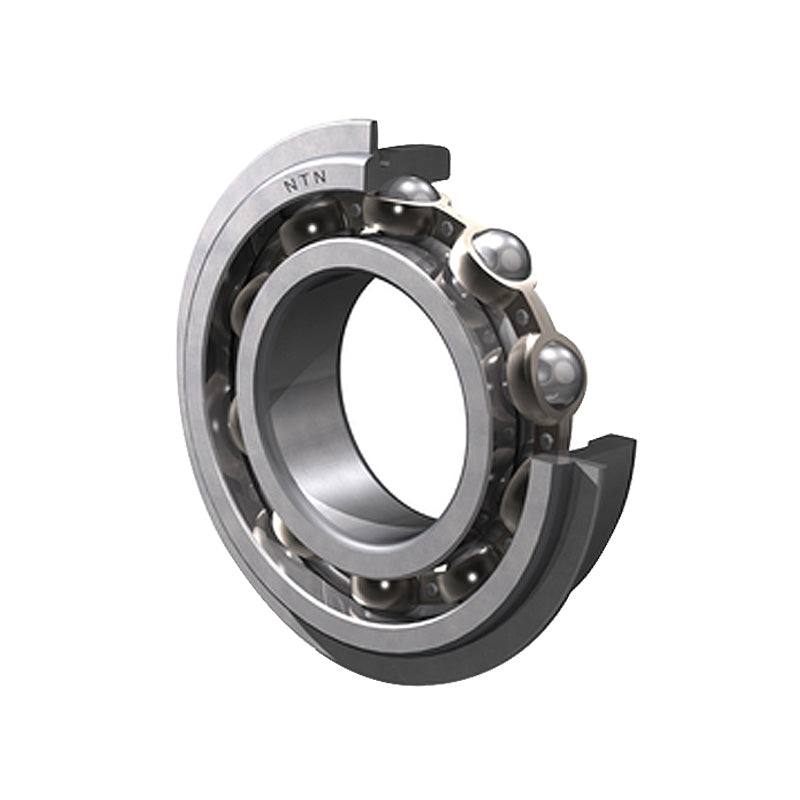

NTN 6216NR Open Type Deep Groove Ball Bearing with Snap Ring 80x140x26mm - Allow 2-3 Days
NTN 6216NR Open Type Deep Groove Ball Bearing with Snap Ring 80x140x26mm - Allow 2-3 Days
Regular price
£110.81
ex VAT£132.97inc. VAT
Regular price
Sale price
£110.81
ex VAT£132.97
inc. VAT
Equivalent to: 6216NRCM 216KG 216SG 43216
In stock
Price Break
5+
£109.70
10+
£105.27
20+
£103.05
50+
£99.73
100+
£97.51
500+
£91.97
1000+
£77.57
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6216NRCM 216KG 216SG 43216
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 53 kN |
| C<sub>u</sub> | 3.95 kN |
| f<sub>0</sub> | 14.6 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 135.23mm |
| a Max. | 4.9mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 149.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| d<sub>a</sub> Max. | 95.5mm |
| D<sub>a</sub> Max. | 131mm |
| D<sub>X</sub> (approx) | 152mm |
| C<sub>Y</sub> Max. | 7.3mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.4 kg |
