SKU: 6213-NTN

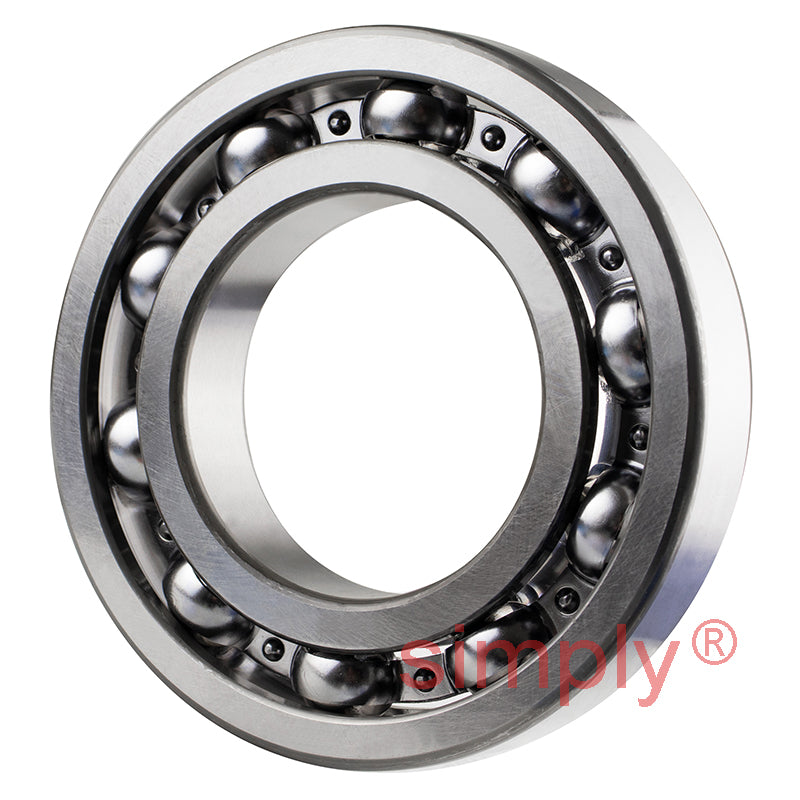

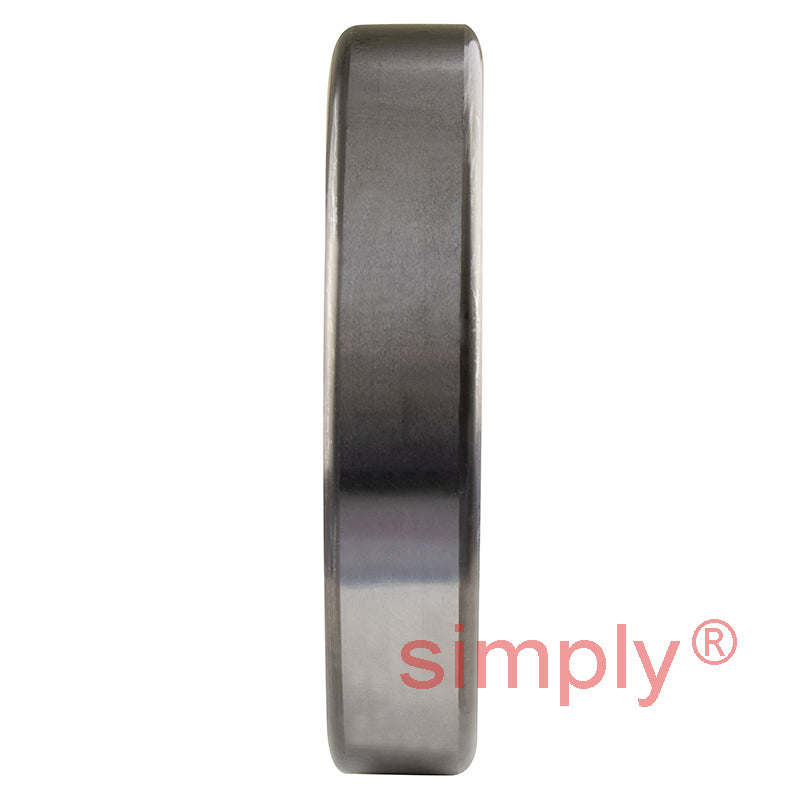

NTN 6213 Open Type Deep Groove Ball Bearing 65x120x23mm
NTN 6213 Open Type Deep Groove Ball Bearing 65x120x23mm
Regular price
£46.42
ex VAT£55.70inc. VAT
Regular price
Sale price
£46.42
ex VAT£55.70
inc. VAT
Equivalent to: 6213CM 213K 1213 213S 6213 3213 10A
In stock
Price Break
3+
£41.31
5+
£38.99
10+
£38.53
25+
£38.06
49+
£37.60
74+
£37.14
99+
£34.82
199+
£34.35
249+
£33.89
499+
£33.42
999+
£32.49
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6213CM 213K 1213 213S 6213 3213 10A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 120mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 63.5 kN |
| C<sub>or</sub> | 40 kN |
| C<sub>u</sub> | 3.15 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 5500 rpm |
| Oil | 6500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 73mm |
| D<sub>a</sub> Max. | 112mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.99 kg |
