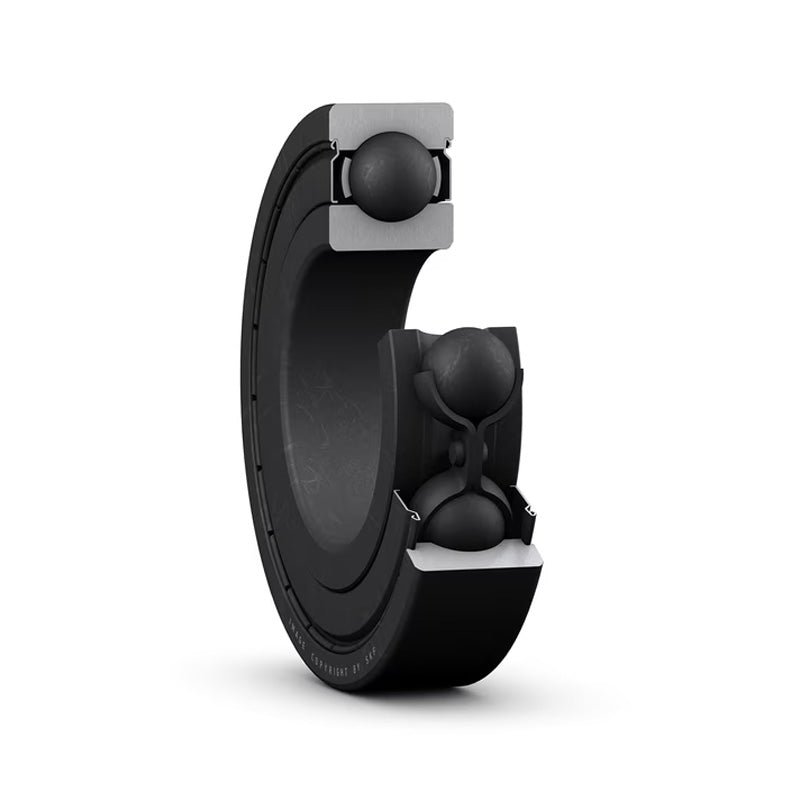

SKF 62102ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 50x90x20mm
SKF 62102ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 50x90x20mm
Regular price
£152.94
ex VAT£183.53inc. VAT
Regular price
Sale price
£152.94
ex VAT£183.53
inc. VAT
In stock
Price Break
10+
£136.12
19+
£128.47
29+
£126.94
39+
£125.41
49+
£123.88
74+
£122.35
99+
£114.71
199+
£113.18
249+
£111.65
499+
£110.12
999+
£107.06
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| d1 | 62.5mm |
| D2 | 81.7mm |
| r1r2 | 1.1mm |
| Basic load rating Co | 23.2 kN |
| Weight | 0.45 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
