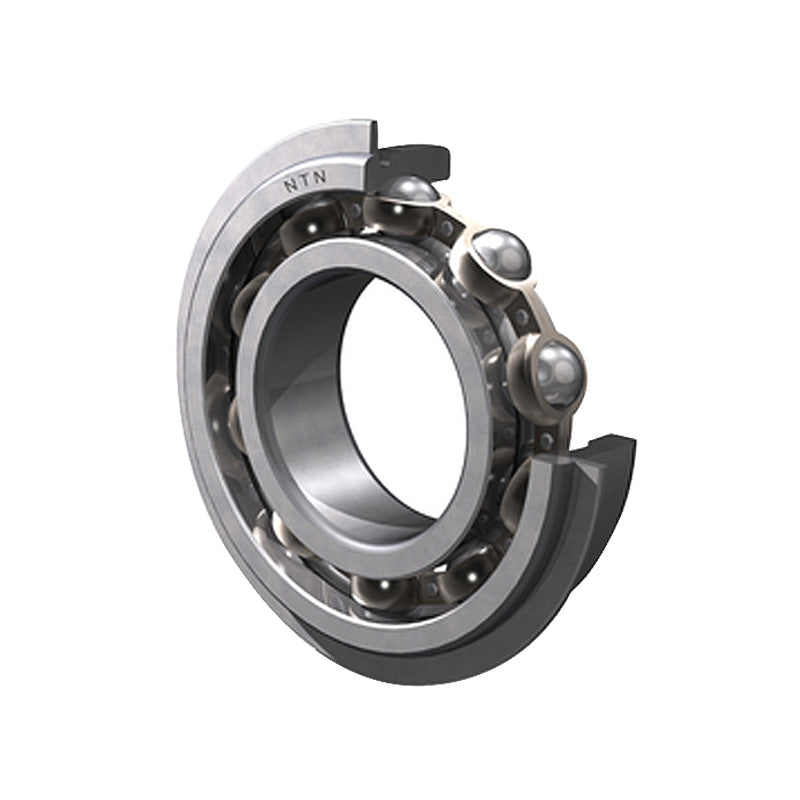

• NTN 6209NR Open Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
1 1

SKU: 6209NR-NTN

NTN 6209NR Open Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm

NTN 6209NR Open Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
£45.72 ex VAT£54.86inc. VAT
£45.72 ex VAT£54.86 inc. VAT
Sale Sold out

Equivalent to: 6209NRCM 209KG 209SG 43209

In stock

Price Break
3+ £40.69
5+ £38.40
10+ £37.95
25+ £37.49
49+ £37.03
74+ £36.58
99+ £34.29
199+ £33.83
249+ £33.38
499+ £32.92
999+ £32.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available


Equivalent: 6209NRCM 209KG 209SG 43209
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 36 kN
C<sub>or</sub> 20.4 kN
C<sub>u</sub> 1.6 kN
f<sub>0</sub> 14.1 kN
Grease 7800 rpm
Oil 9200 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 81.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 91.6mm
f Max. 1.7mm
--- Fitting Dimensions
d<sub>a</sub> Min. 51.5mm
d<sub>a</sub> Max. 55.5mm
D<sub>a</sub> Max. 78.5mm
D<sub>X</sub> (approx) 93mm
C<sub>Y</sub> Max. 4.6mm
C<sub>Z</sub> Min. 1.7mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.398 kg
