SKU: 6209-NTN

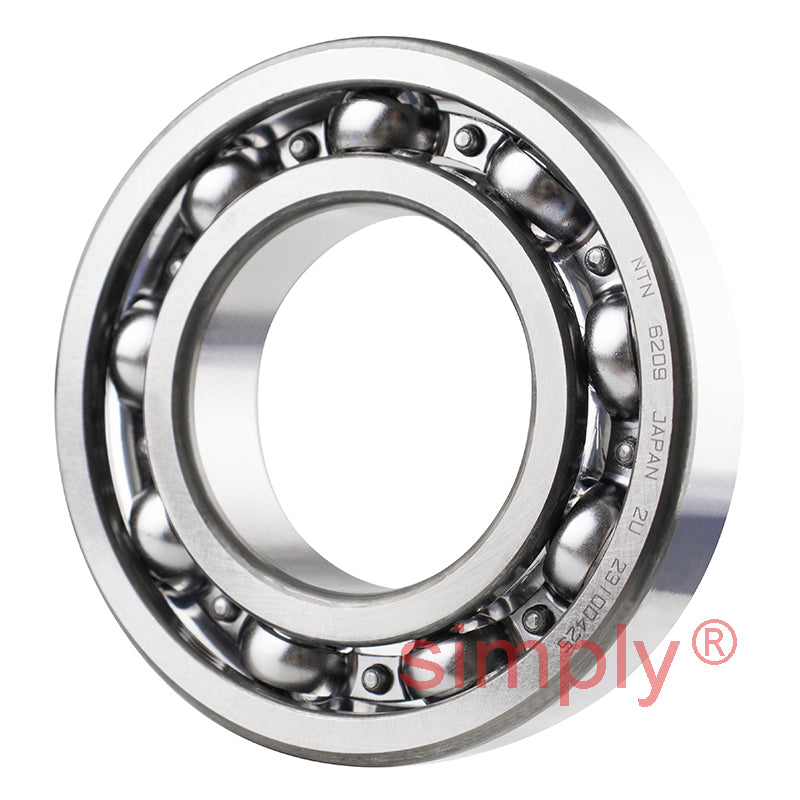

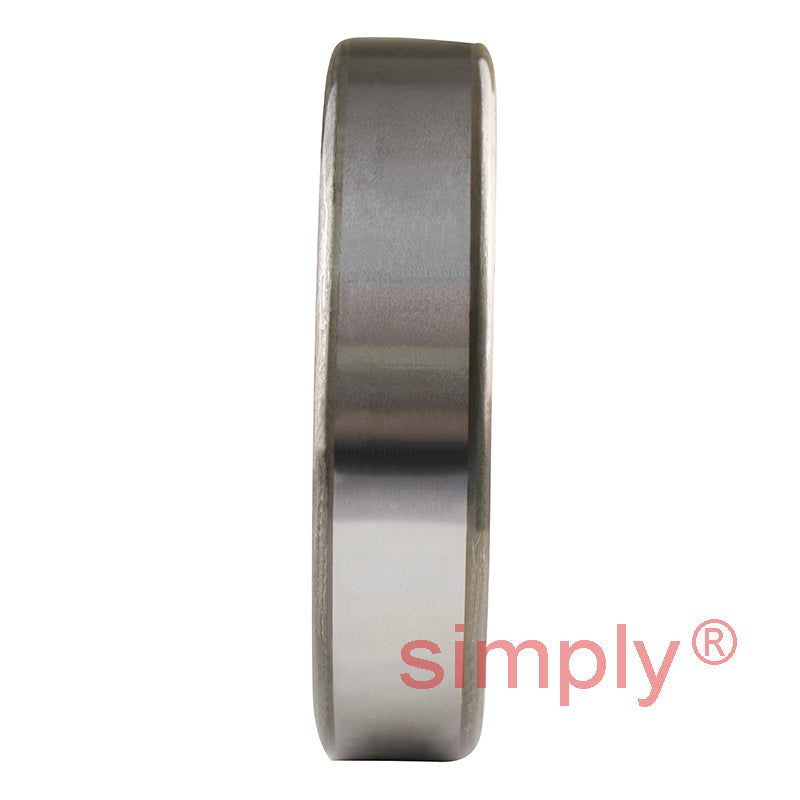

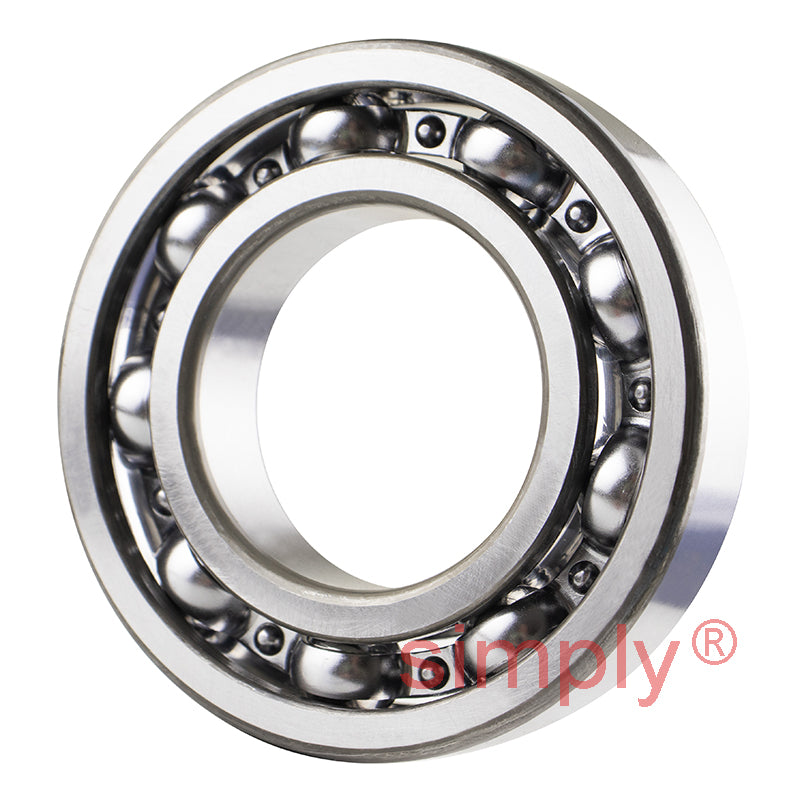

NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
Regular price
£19.87
ex VAT£23.84inc. VAT
Regular price
Sale price
£19.87
ex VAT£23.84
inc. VAT
Equivalent to: 6209CM 209K 1209 209S 6209 3209 6A
In stock
Price Break
3+
£17.68
5+
£16.69
10+
£16.49
25+
£16.29
49+
£16.09
74+
£15.90
99+
£14.90
199+
£14.70
249+
£14.51
499+
£14.31
999+
£13.91
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6209CM 209K 1209 209S 6209 3209 6A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36 kN |
| C<sub>or</sub> | 20.4 kN |
| C<sub>u</sub> | 1.6 kN |
| f<sub>0</sub> | 14.1 kN |
| Grease | 7800 rpm |
| Oil | 9200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51.5mm |
| D<sub>a</sub> Max. | 78.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.398 kg |
