SKU: 6208-NTN

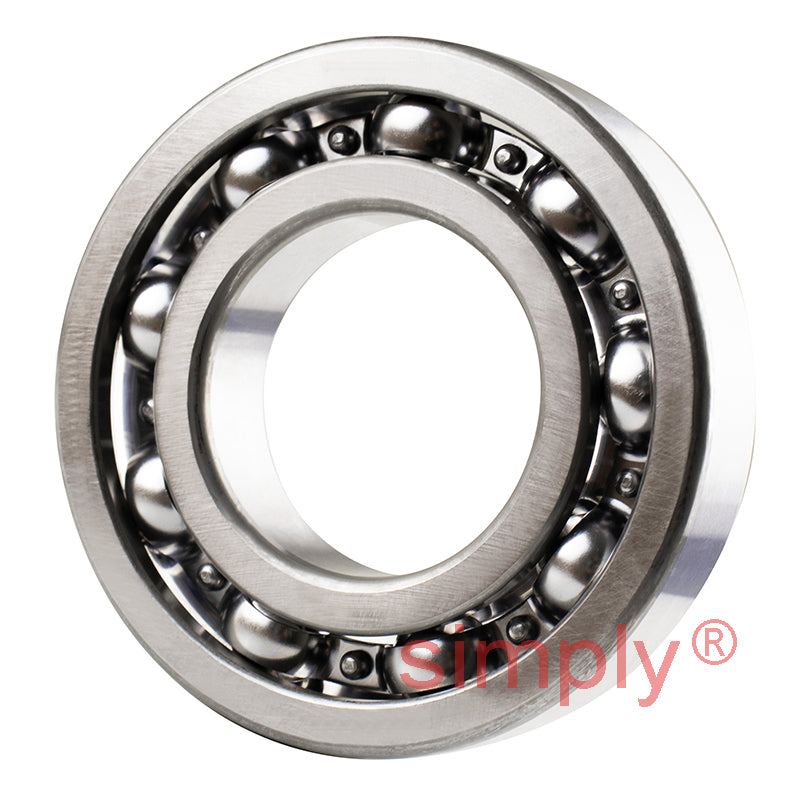

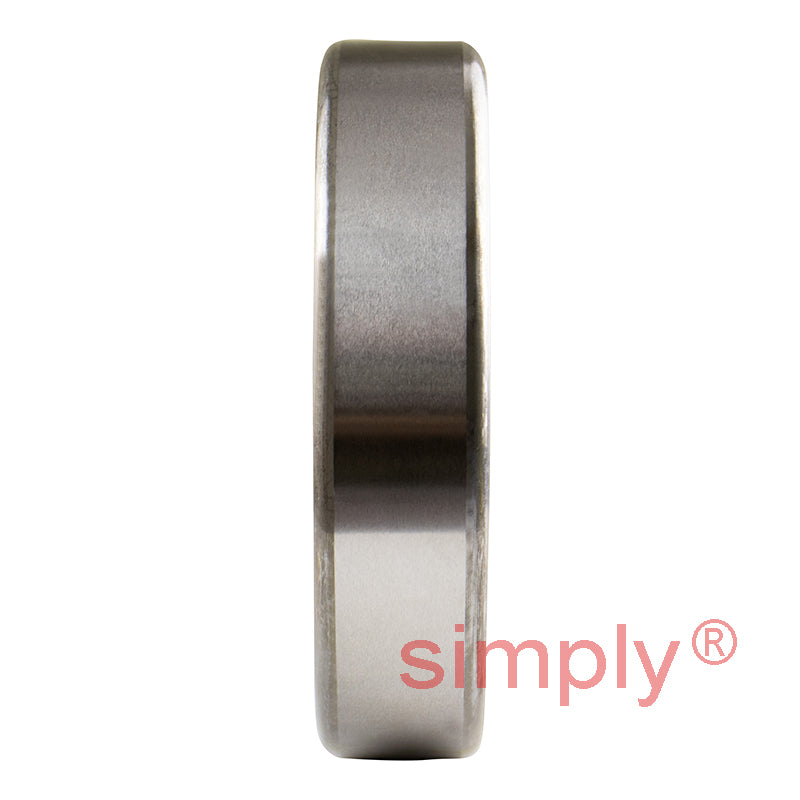

NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
Regular price
£16.25
ex VAT£19.50inc. VAT
Regular price
Sale price
£16.25
ex VAT£19.50
inc. VAT
Equivalent to: 6208CM 208K 1208 208S 6208 3208 5A
In stock
Price Break
3+
£14.46
5+
£13.65
10+
£13.49
25+
£13.33
49+
£13.16
74+
£13.00
99+
£12.19
199+
£12.03
249+
£11.86
499+
£11.70
999+
£11.38
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6208CM 208K 1208 208S 6208 3208 5A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 kN |
| Grease | 8700 rpm |
| Oil | 10000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 46.5mm |
| D<sub>a</sub> Max. | 73.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.366 kg |
