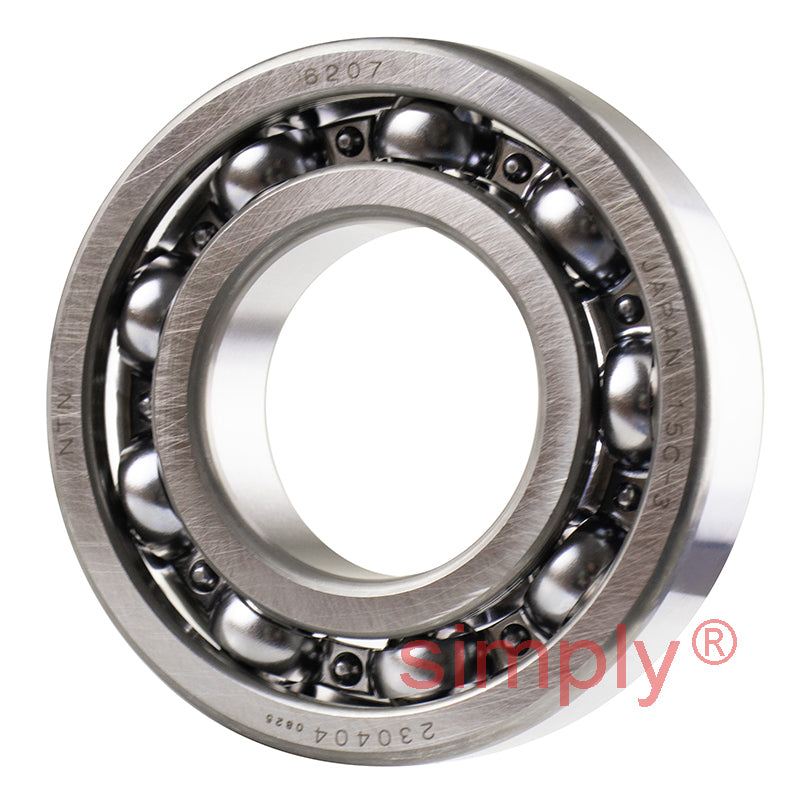

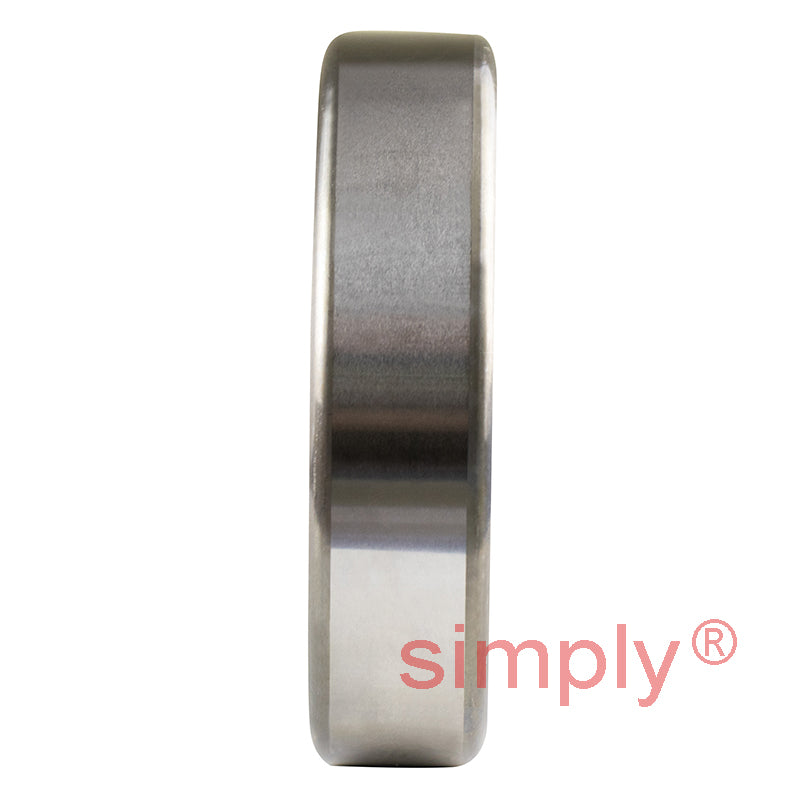

NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
Regular price
£12.60
ex VAT£15.12inc. VAT
Regular price
Sale price
£12.60
ex VAT£15.12
inc. VAT
Equivalent to: 6207CM 207K 1207 207S 6207 3207 4A
In stock
Price Break
3+
£11.21
5+
£10.58
10+
£10.46
25+
£10.33
49+
£10.21
74+
£10.08
99+
£9.45
199+
£9.32
249+
£9.20
499+
£9.07
999+
£8.82
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6207CM 207K 1207 207S 6207 3207 4A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 9800 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 41.5mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.288 kg |
