SKU: 6205NR-NTN

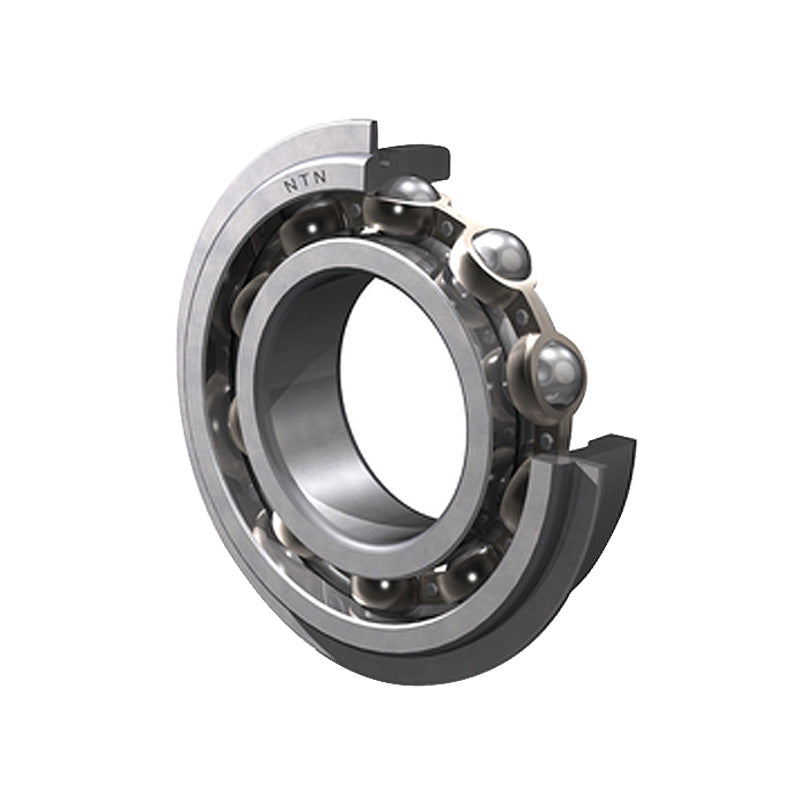

NTN 6205NR Open Type Deep Groove Ball Bearing with Snap Ring 25x52x15mm
NTN 6205NR Open Type Deep Groove Ball Bearing with Snap Ring 25x52x15mm
Regular price
£18.19
ex VAT£21.83inc. VAT
Regular price
Sale price
£18.19
ex VAT£21.83
inc. VAT
Equivalent to: 6205NRCM 205KG 205SG 43205
In stock
Price Break
3+
£16.19
5+
£15.28
10+
£15.10
25+
£14.92
49+
£14.73
74+
£14.55
99+
£13.64
199+
£13.46
249+
£13.28
499+
£13.10
999+
£12.73
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6205NRCM 205KG 205SG 43205
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 49.73mm |
| a Max. | 2.46mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 57.9mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| d<sub>a</sub> Max. | 32mm |
| D<sub>a</sub> Max. | 47mm |
| D<sub>X</sub> (approx) | 58.5mm |
| C<sub>Y</sub> Max. | 3.3mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.128 kg |
