SKU: 6204-2NSE/C3-NACHI

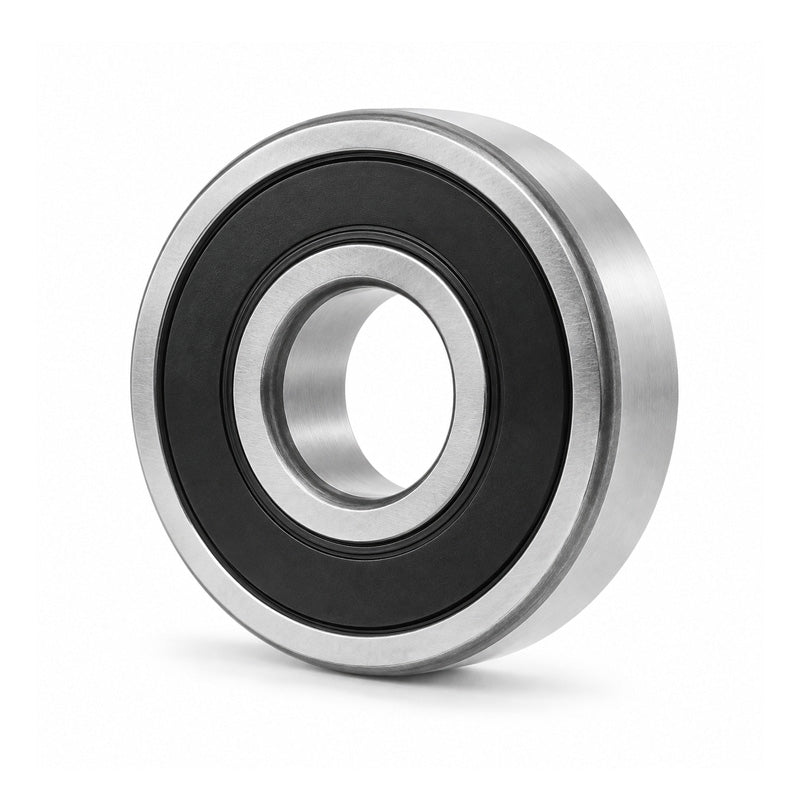

NACHI 62042NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
NACHI 62042NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
Regular price
£5.98
ex VAT£7.18inc. VAT
Regular price
Sale price
£5.98
ex VAT£7.18
inc. VAT
Equivalent to: 6204NSEC3 6204DUC3 6204RSC3 6204RSHC3 6204PC3 6204RSRC3 6204LUC3 6204DDUC3 62042RSC3 62042RS1C3 62042RSHC3 6204PPC3 62042RSRC3 6204LLUC3
In stock
Price Break
10+
£5.32
19+
£5.02
29+
£4.96
39+
£4.90
49+
£4.84
74+
£4.78
99+
£4.49
199+
£4.43
249+
£4.37
499+
£4.31
999+
£4.19
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6204NSEC3 6204DUC3 6204RSC3 6204RSHC3 6204PC3 6204RSRC3 6204LUC3 6204DDUC3 62042RSC3 62042RS1C3 62042RSHC3 6204PPC3 62042RSRC3 6204LLUC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 12800 kN |
| Static load | 6600 kN |
| Max speed | 16000 rpm |
| da min | 26mm |
| Da max | 41mm |
| ra max | 1mm |
| Weight | 0.106 kg |
