SKU: 6203-2Z/VA201-SKF

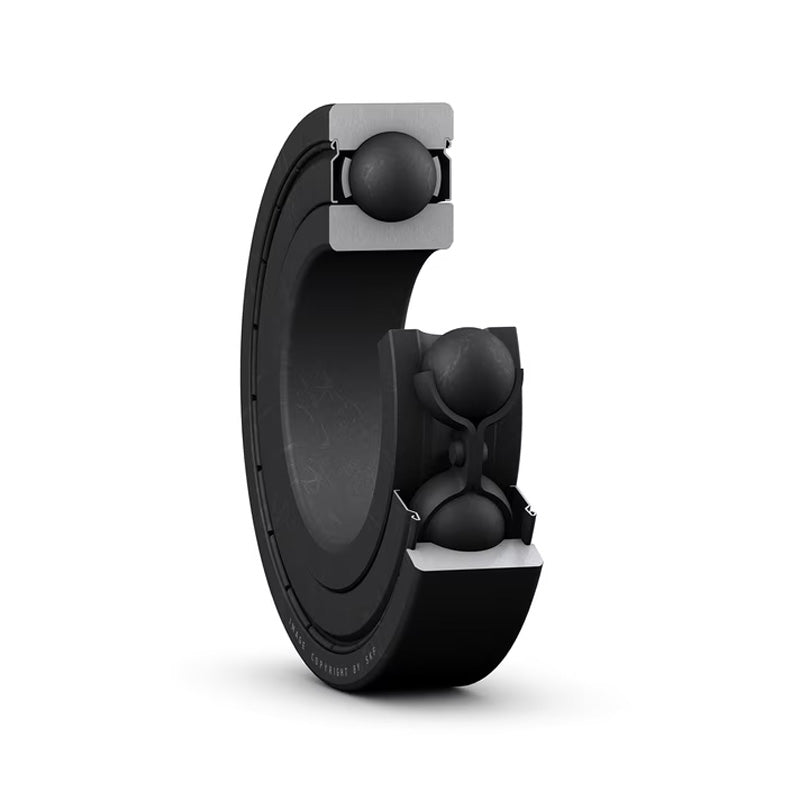

SKF 62032ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x40x12mm
SKF 62032ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x40x12mm
Regular price
£52.40
ex VAT£62.88inc. VAT
Regular price
Sale price
£52.40
ex VAT£62.88
inc. VAT
In stock
Price Break
10+
£46.64
19+
£44.02
29+
£43.49
39+
£42.97
49+
£42.44
74+
£41.92
99+
£39.30
199+
£38.78
249+
£38.25
499+
£37.73
999+
£36.68
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| d1 | 24.2mm |
| D2 | 35mm |
| r1r2 | 0.6mm |
| Basic load rating Co | 4.75 kN |
| Weight | 0.065 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
