SKU: 6202NR-NTN

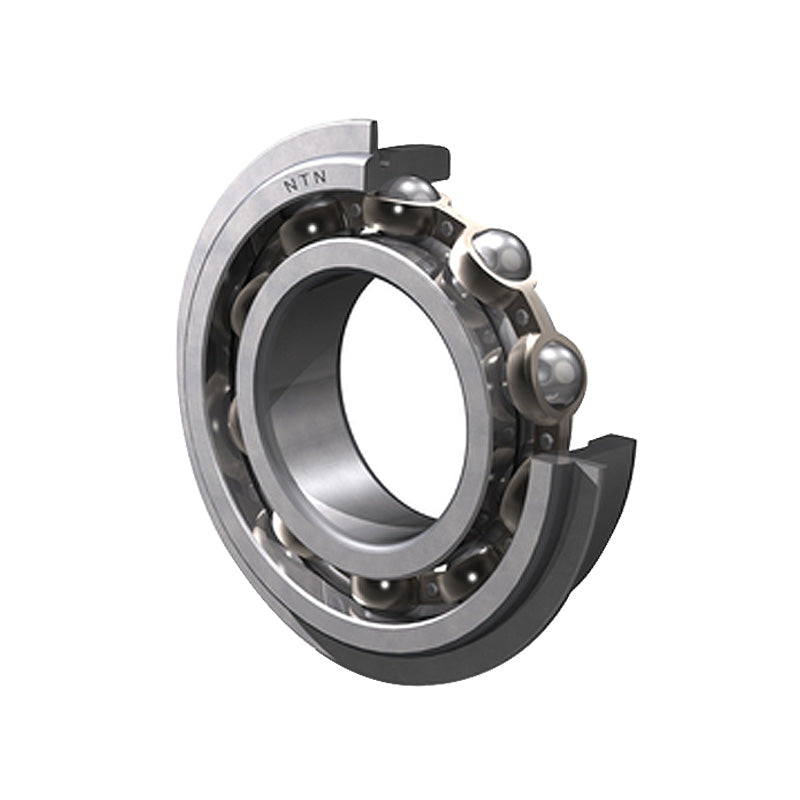

NTN 6202NR Open Type Deep Groove Ball Bearing with Snap Ring 15x35x11mm
NTN 6202NR Open Type Deep Groove Ball Bearing with Snap Ring 15x35x11mm
Regular price
£12.70
ex VAT£15.24inc. VAT
Regular price
Sale price
£12.70
ex VAT£15.24
inc. VAT
Equivalent to: 6202NRCM 202KG 202SG 43202
In stock
Price Break
3+
£11.30
5+
£10.67
10+
£10.54
25+
£10.41
49+
£10.29
74+
£10.16
99+
£9.53
199+
£9.40
249+
£9.27
499+
£9.14
999+
£8.89
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6202NRCM 202KG 202SG 43202
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 35mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 8.6 kN |
| C<sub>or</sub> | 3.6 kN |
| C<sub>u</sub> | 0.279 kN |
| f<sub>0</sub> | 12.7 kN |
| Grease | 19000 rpm |
| Oil | 23000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 33.17mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 39.7mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| d<sub>a</sub> Max. | 20mm |
| D<sub>a</sub> Max. | 31mm |
| D<sub>X</sub> (approx) | 40.5mm |
| C<sub>Y</sub> Max. | 2.9mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 0.6mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.045 kg |
