SKU: 6202-HT-330

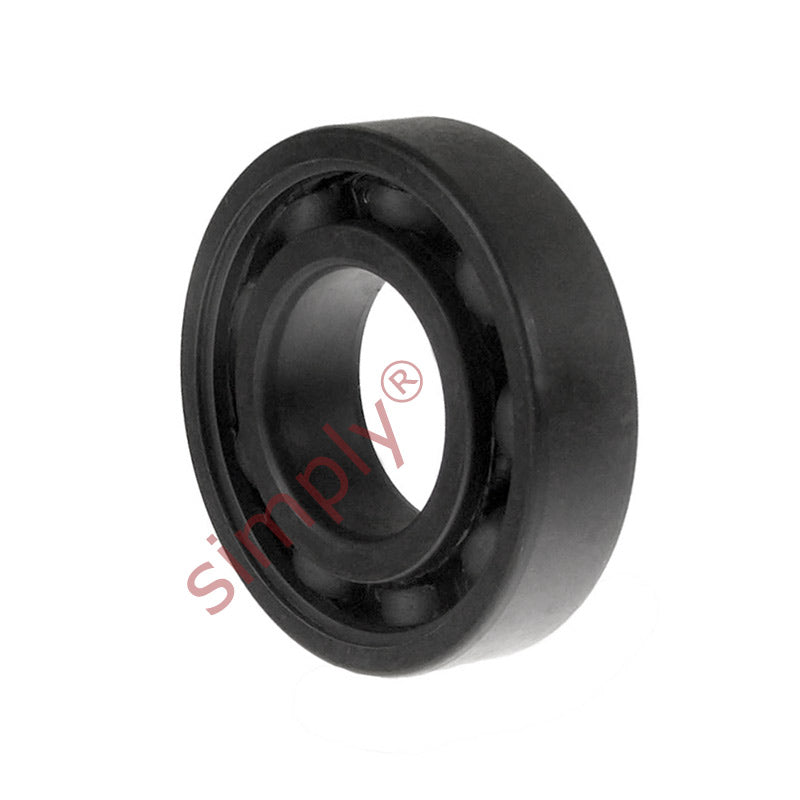

6202HT330 High Temp 330C Open Deep Groove Ball Bearing 15x35x11mm Max 250rpm
6202HT330 High Temp 330C Open Deep Groove Ball Bearing 15x35x11mm Max 250rpm
Regular price
£7.72
ex VAT£9.26inc. VAT
Regular price
Sale price
£7.72
ex VAT£9.26
inc. VAT
Equivalent to: 6202VA201 6202VA208 6202VA228
In stock
Price Break
10+
£6.87
19+
£6.48
29+
£6.41
39+
£6.33
49+
£6.25
74+
£6.18
99+
£5.79
199+
£5.71
249+
£5.64
499+
£5.56
999+
£5.40
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6202VA201 6202VA208 6202VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 15mm |
|---|---|
| Outside diameter D | 35mm |
| Width W | 11mm |
| Static load max | 2.17 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 250 rpm |
| Weight | 45 g |
