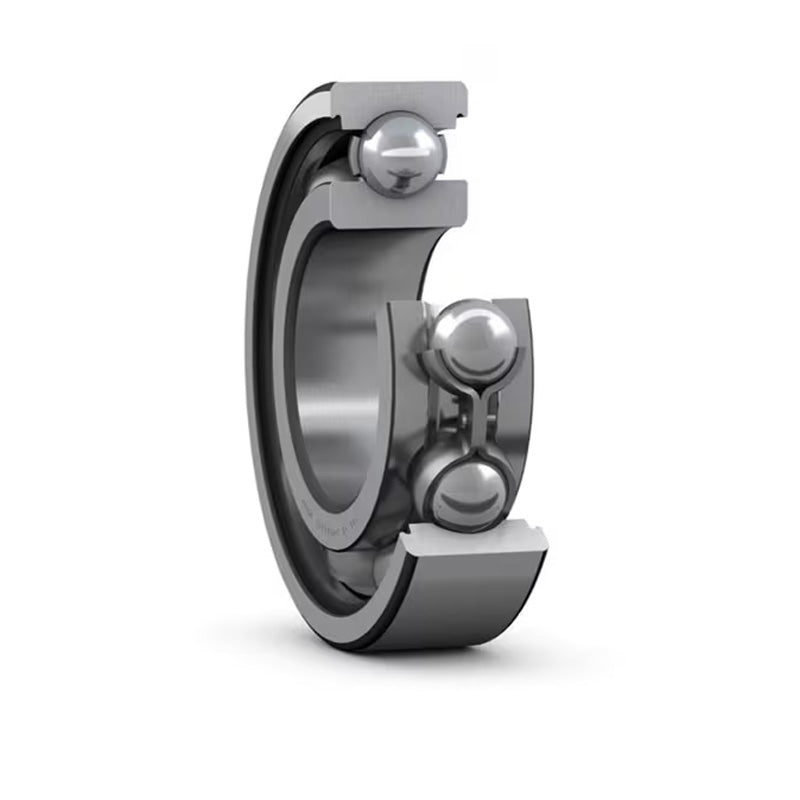

• SKF 61964MA Open Type Thin Section Deep Groove Ball Bearing 320x440x56mm
1 1

SKU: 61964MA-SKF

SKF 61964MA Open Type Thin Section Deep Groove Ball Bearing 320x440x56mm

SKF 61964MA Open Type Thin Section Deep Groove Ball Bearing 320x440x56mm
£7,356.86 ex VAT£8,828.23inc. VAT
£7,356.86 ex VAT£8,828.23 inc. VAT
Sale Sold out

In stock

Price Break
4+ £6,547.61
10+ £6,179.76
20+ £6,106.19
30+ £6,032.63
50+ £5,959.06
75+ £5,885.49
100+ £5,517.65
200+ £5,444.08
250+ £5,370.51
500+ £5,296.94
1000+ £5,149.80
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
320mm
Outside Diameter:
440mm
Width:
56mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 320mm
D 440mm
B 56mm
Dynamic load 276 kN
Static load 400 kN
Fatigue load limit Pu 8.65 kN
Reference speed 2 800 rpm
Limiting speed 2 400 rpm
Weight 25.5 kg
d1 358mm
D1 402mm
D2 3mm
r1r2 min 333mm
da min 427mm
Da max 2.5mm
ra max 0.02mm
Calculation factor kr 16
Calculation factor Cor N/A
