SKU: 61901-2RS1-EU

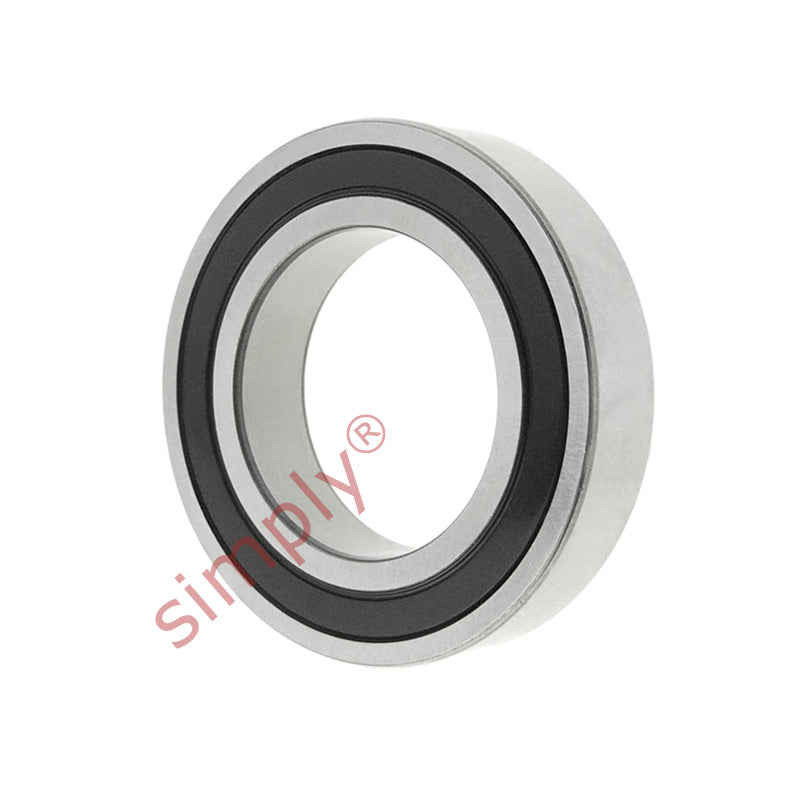

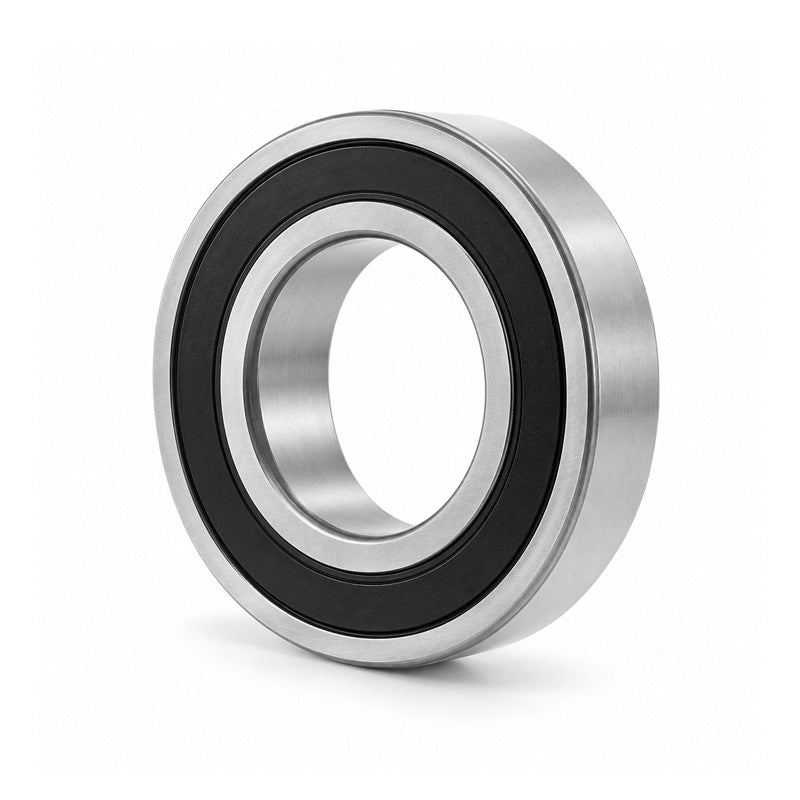

69012RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 61901NSE 61901DU 61901RS 619012RSH 61901P 61901RSR 61901LU 6901NSE 6901DU 6901RS 69012RSH 6901P 6901RSR 6901LU 619012NSE 61901DDU 619012RS 6190122RSH 61901PP 619012RSR 61901LLU 619012RS2 61901RS2 619012RSH 619012RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61901NSE 61901DU 61901RS 619012RSH 61901P 61901RSR 61901LU 6901NSE 6901DU 6901RS 69012RSH 6901P 6901RSR 6901LU 619012NSE 61901DDU 619012RS 6190122RSH 61901PP 619012RSR 61901LLU 619012RS2 61901RS2 619012RSH 619012RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 6mm |
| r min | 0.3mm |
| Dynamic load Cr | 2.9 kN |
| Static load Cor | 1.45 kN |
| Speed in grease | 31000 rpm |
| Speed in oil | 36000 rpm |
