SKU: 618/6-MB

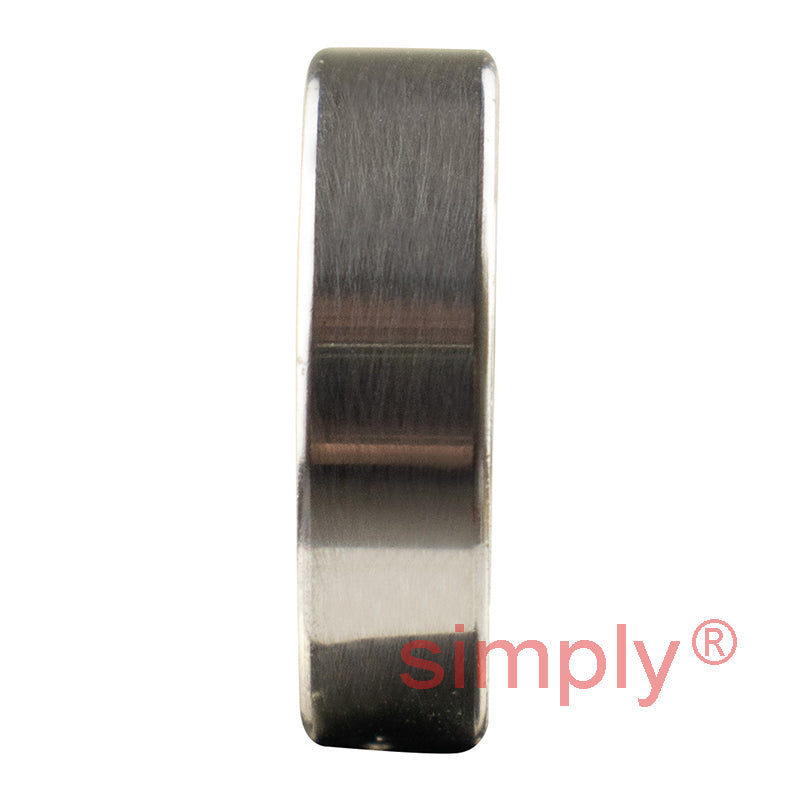

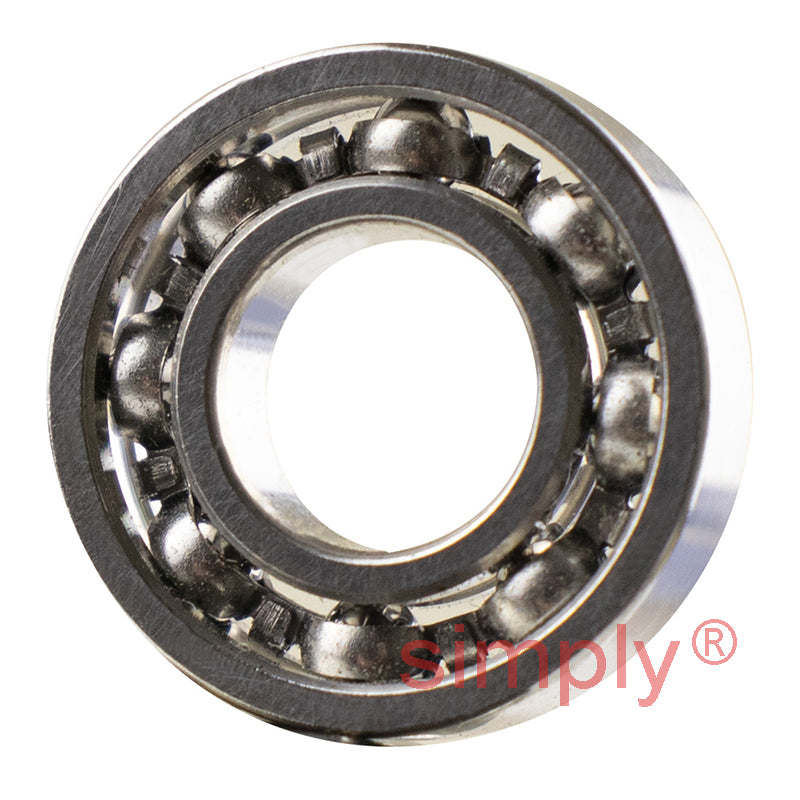

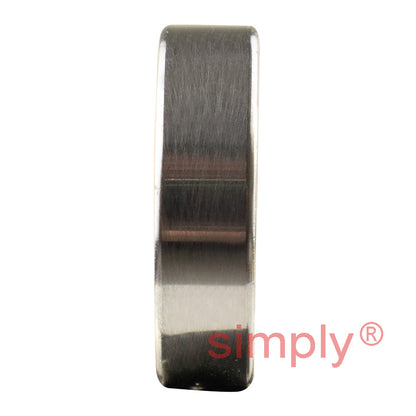

Major Brand 618/6 Open Deep Groove Ball Bearing 6x13x3.5mm
Major Brand 618/6 Open Deep Groove Ball Bearing 6x13x3.5mm
Regular price
£6.74
ex VAT£8.09inc. VAT
Regular price
Sale price
£6.74
ex VAT£8.09
inc. VAT
Equivalent to: 686
In stock
Price Break
10+
£6.00
19+
£5.66
29+
£5.60
39+
£5.53
49+
£5.46
74+
£5.39
99+
£5.06
199+
£4.99
249+
£4.92
499+
£4.85
999+
£4.72
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 686
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 13mm
- Width:
- 3.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 6mm |
|---|---|
| D | 13mm |
| B | 3.5mm |
| Dynamic load C | 0.884 kN |
| Static load Co | 0.345 kN |
| Fatigue load limit Pu | 0.015 kN |
| Reference speed | 110000 rpm |
| Limiting speed | 67000 rpm |
| Mass | 0.002 kg |
| d1 | 7.9mm |
| D1 | 11.2mm |
| r1r2 min | 0.15mm |
| da min | 6.8mm |
| Da max | 12.2mm |
| ra max | 0.1mm |
| Calc factor Kr | 0.015 |
| Calc factor | 11 |
