SKU: 60H-1-SD-NO26-RENOLD
Renold SD 60H-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SD 60H-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
£7.06
ex VAT£8.47inc. VAT
Regular price
Sale price
£7.06
ex VAT£8.47
inc. VAT
In stock
Price Break
10+
£6.28
19+
£5.93
29+
£5.86
39+
£5.79
49+
£5.72
74+
£5.65
99+
£5.30
199+
£5.22
249+
£5.15
499+
£5.08
999+
£4.94
Couldn't load pickup availability
Description
Description

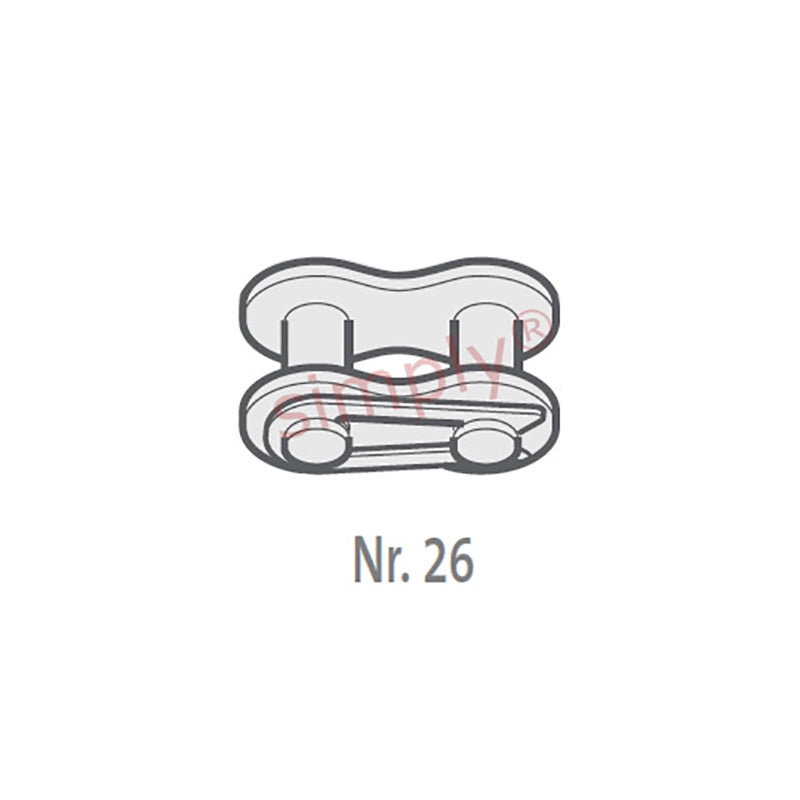

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.6mm |
| Roller Diameter max (C) | 11.9mm |
| Plate Height max (D) | 18mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 28.8mm |
| ISO606 Tensile Strength min | 3245 N |
| Weight | 1.97kg/m |
